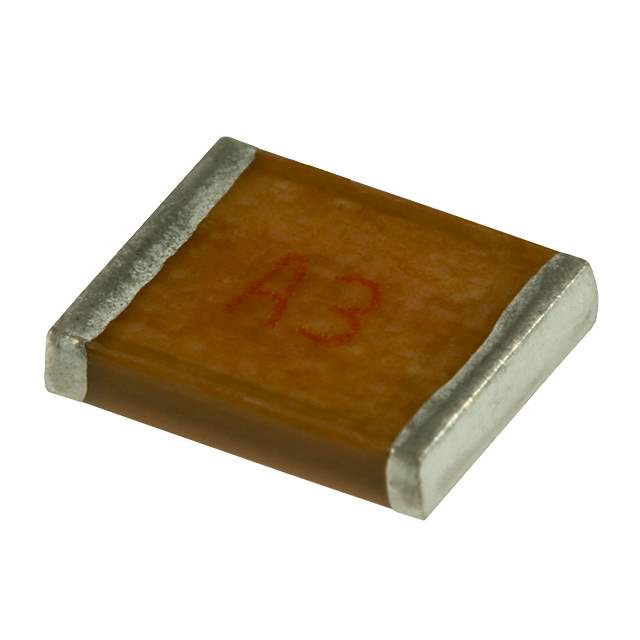

MC22FF152J-F Real Image
Same model may have multiple batches, images only for reference.

MC22FF152J-F

Part No MC22FF152J-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 1500PF 5% 1KV 2220
Datasheet
MC22FF152J-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Bulk
Status Active
Capacitance 1500pF
Tolerance ±5%
Voltage Rating 1000V (1kV)
Dielectric Material Mica
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Features RF, High Q, Low Loss
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 138774-MC22FF152J-F
Ultra Librarian 3D Model Ultra Librarian MC22FF152J-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) MC22FF152J-F capacitor is a high-quality, low-loss, high-Q RF capacitor designed for a wide range of electrical projects.

  • With a capacitance of 1500pF and a voltage rating of 1000V (1kV): this capacitor is perfect for use in high-frequency applications.
  • The MC series capacitor features a surface-mount device (SMD) package with a height of 0.157 inches (4.00mm) and is made of Mica dielectric material.
  • The Cornell Dubilier Electronics (CDE) MC22FF152J-F capacitor has a tolerance of ±5% and is suitable for use in a temperature range of -55°C to 125°C.
