Same model may have multiple batches, images only for reference.

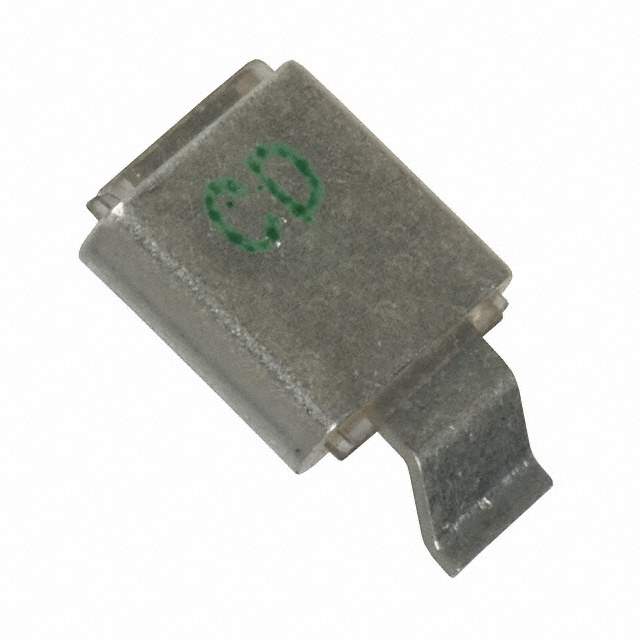

MIN02-002EC700J-T Real Image
Same model may have multiple batches, images only for reference.

MIN02-002EC700J-T

Part No MIN02-002EC700J-T
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 70PF 5% 300V SMD
Datasheet
MIN02-002EC700J-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Reel - TR
Status Active
Capacitance 70pF
Tolerance ±5%
Voltage Rating 300V
Dielectric Material Mica
Temperature Range - Operating -55°C to 200°C
Mounting SMD (SMT)
Features RF, High Frequency
Dimension 0.218" L x 0.400" W (5.54mm x 10.16mm)
Win Source Part Number 208432-MIN02-002EC700J-T
Ultra Librarian 3D Model Ultra Librarian MIN02-002EC700J-T CAD Model

Description

The Cornell Dubilier Electronics (CDE) MIN02-002EC700J-T is a high-frequency capacitor designed for use in RF circuits.

  • Application: RF circuits
  • Capacitance: 70pF
  • Voltage Rating: 300V
  • Package: 0402 package
  • Tolerance: ±5%
  • Material: Mica
  • Feature: Excellent stability and low losses @ high frequencies
  • Ideal for: Use in RF amplifiers, filters, and oscillators
