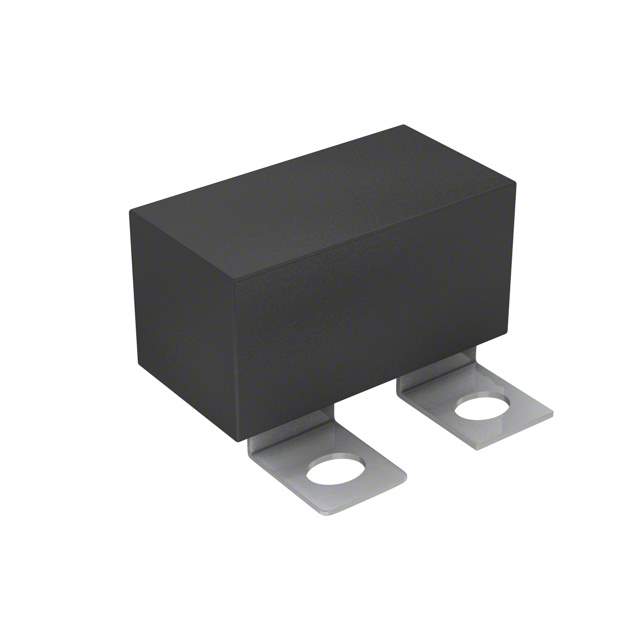

SCD224K162A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD224K162A3Z25-F

Part No SCD224K162A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD224K162A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 0.22 µF
Tolerance ±10%
Voltage Rating - AC 630V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 19 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.850" L x 0.969" W (47.00mm x 24.60mm)
Height - Seated (Max) 0.949" (24.10mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302679-SCD224K162A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD224K162A3Z25-F CAD Model

Description

This electronic component is a film capacitor and is part of the SCD series.

  • Win Source Part Number: 1302679-SCD224K162A3Z25-F
  • Termination: Screw terminals
  • Package: Bulk
  • Voltage Rating - AC: 630V
  • Voltage Rating - DC: 1600V (1.6kV)
  • Application: Snubber applications
  • Height - Seated (Max): 0.949" (24.10mm)
  • Capacitance: 0.22 µF
  • Tolerance: ±10%
  • Lead Spacing: 1.000" (25.40mm)
  • ESR (Equivalent Series Resistance): 19 mOhms
  • Dielectric Material: Polypropylene (PP), metallized
  • Mounting Type: Chassis mountable
  • Package / Case: Rectangular box
  • Temperature Range: -55°C ~ 85°C
  • Dimension: 1.850" L x 0.969" W (47.00mm x 24.60mm)
  • ECCN: EAR99
  • Mfr: Cornell Dubilier Electronics (CDE)
  • Also Known As: 336-1339
