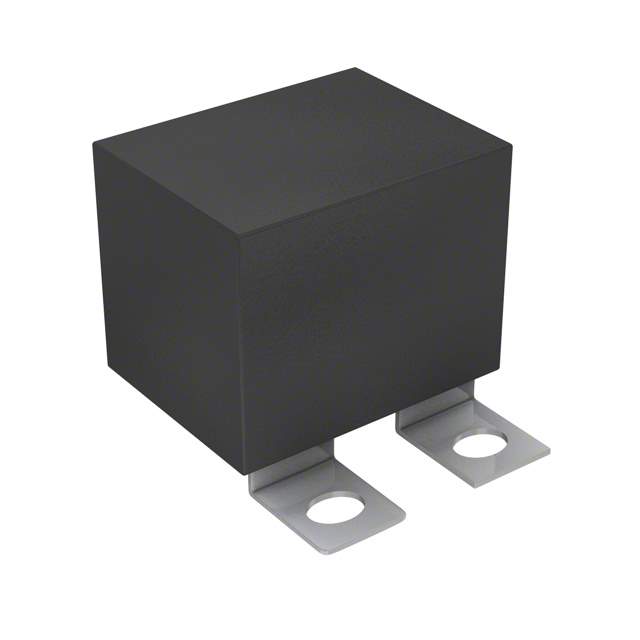

SCD684K162A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD684K162A3Z25-F

Part No SCD684K162A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD684K162A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 0.68 µF
Tolerance ±10%
Voltage Rating - AC 630V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 7 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.776" L x 1.370" W (45.10mm x 34.80mm)
Height - Seated (Max) 1.402" (35.60mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Other Names 2266-SCD684K162A3Z25-F
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302669-SCD684K162A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD684K162A3Z25-F CAD Model

Description

The SCD684K162A3Z25-F is a film capacitor manufactured by Cornell Dubilier Electronics (CDE).

  • Application: Snubber application
  • Capacitance: 0.68µF
  • Voltage Rating (DC): 1.6kV
  • Voltage Rating (AC): 630V
  • Mounting Type: Chassis mount
  • Termination: Screw terminals
  • Height: 1.402 inches
  • Package: Rectangular box
  • ESR: 7 mOhms
  • Fake Products Chance: 61 percent
