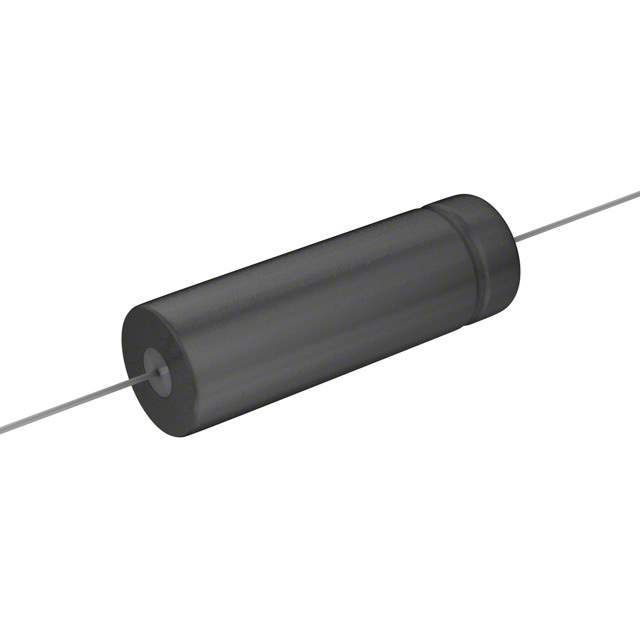

Same model may have multiple batches, images only for reference.

TC1550

Get a Quote

Part No	TC1550
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 5000UF 16V AXIAL / 5000 µF 16 V Aluminum Electrolytic Capacitors Axial, Can 70mOhm @ 120Hz 1000 Hrs @ 85°C
Datasheet	TC1550 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Packaging	Bulk
Product Status	Obsolete
Capacitance	5000 µF
Tolerance	-10%, +75%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	70mOhm @ 120Hz
Lifetime @ Temp.	1000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	3.217 A @ 120 Hz
Ripple Current @ High Frequency	3.67 A @ 2.4 kHz
Size / Dimension	0.875" Dia x 2.625" L (22.22mm x 66.68mm)
Mounting	Through Hole
Case / Package	Axial, Can
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Standard Package	1
Win Source Part Number	1330194-TC1550
Ultra Librarian 3D Model	Ultra Librarian TC1550 CAD Model

Alternative Products

Description

The Cornell Dubilier Electronics (CDE) 1330194-TC1550 is an aluminum electrolytic capacitor with a capacitance of 5000 µF and rated voltage of 16 V.

Capacitance: 5000 µF
Rated Voltage: 16 V
Tolerance: -10%, +75%
ESR: 70mOhm @ 120Hz
Application: General Purpose
Lifetime: 1000 Hrs @ 85°C
Polarization: Polarized
Package: Axial, Can
Ripple Current: 3.217 A @ 120 Hz and 3.67 A @ 2.4 kHz
Status: Obsolete
RoHS Compliance: Non-Compliant
