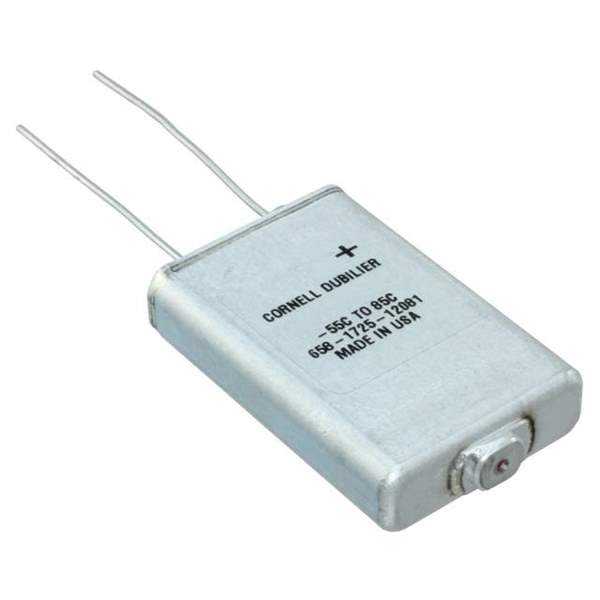

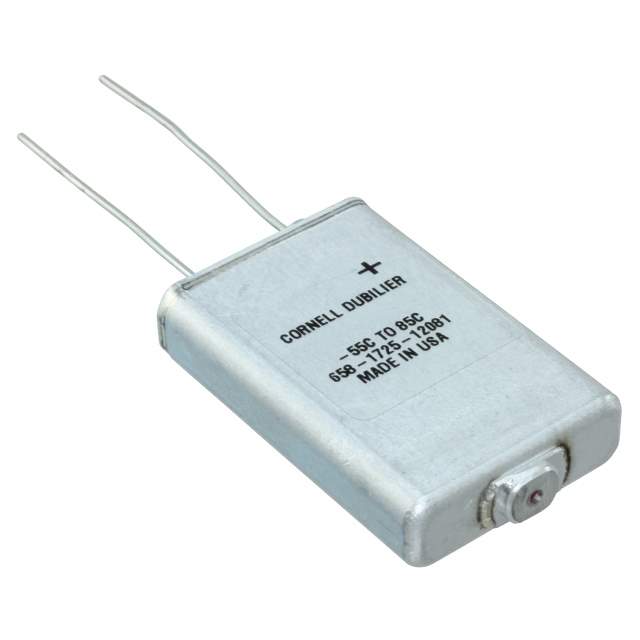

Same model may have multiple batches, images only for reference.

THA742M030AD0C

Get a Quote

Part No	THA742M030AD0C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 7400UF 20% 30V FLATPACK / 7400 µF 30 V Aluminum Electrolytic Capacitors FlatPack 50mOhm @ 120Hz 5000 Hrs @ 85°C
Datasheet	THA742M030AD0C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	THA
Package	Bulk
Capacitance	7400 µF
Tolerance	±20%
Voltage - Rated	30 V
ESR (Equivalent Series Resistance)	50mOhm @ 120Hz
Lifetime @ Temp.	5000 Hrs @ 85°C
Temperature Range - Operating	-55°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	3.3 A @ 120 Hz
Ripple Current @ High Frequency	3.63 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	2.618" L x 0.953" W (66.50mm x 24.20mm)
Height - Seated (Max)	0.335" (8.50mm)
Mounting Type	Through Hole
Package / Case	FlatPack
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0085
Standard Package	60
Win Source Part Number	1157733-THA742M030AD0C
Ultra Librarian 3D Model	Ultra Librarian THA742M030AD0C CAD Model

Alternative Products

Description

The THA series aluminum electrolytic capacitor from Cornell Dubilier Electronics (CDE) is designed for general-purpose applications. With a capacitance of 7400 µF and a voltage rating of 30 V, this through-hole capacitor has a tolerance of ±20% and an ESR of 50mOhm @ 120Hz.

Capacitance: 7400 µF
Voltage Rating: 30 V
Tolerance: ±20%
ESR: 50mOhm @ 120Hz
Lifetime @ 85°C: 5000 hours
Type: Polarized
Package Dimensions: 2.618 inches x 0.953 inches (66.50mm x 24.20mm)
Lead Spacing: 0.394 inches (10.00mm)
Packaging: Bulk
Standard Package: 60 units
Temperature Range: -55°C to 85°C
