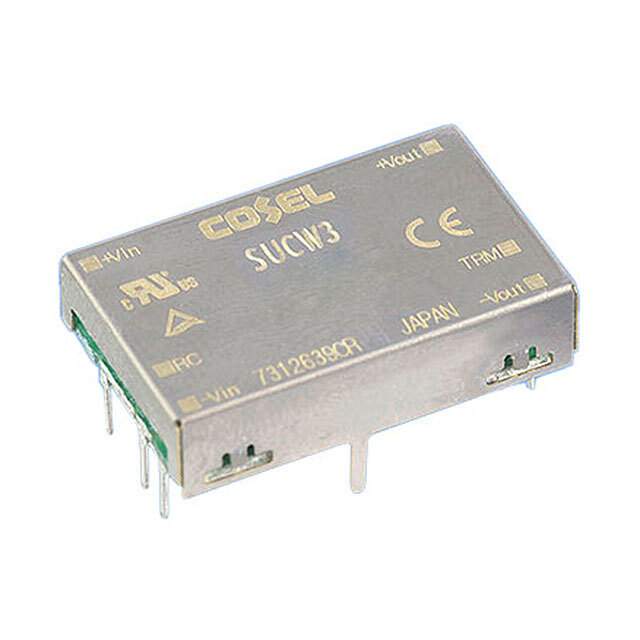

SUCW30512C Real Image
Same model may have multiple batches, images only for reference.

SUCW30512C

Part No SUCW30512C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 130mA, 130mA 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series SUCW (3W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 130mA, 130mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 74%
Mounting Type Through Hole
Package / Case 7-DIP Module
Size / Dimension 0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm)
Base Product Number SUCW30512
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1336718-SUCW30512C
Ultra Librarian 3D Model Ultra Librarian SUCW30512C CAD Model

Description

The SUCW30512C is a 3W isolated module DC-DC converter from Cosel USA, Inc.

  • Type: Isolated Module
  • Features: Remote On/Off, OCP
  • Package: Tray
  • Size / Dimension: 0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm)
  • Application: ITE (Commercial)
  • Voltage - Isolation: 500 V
  • Number of Outputs: 2
  • Current - Output (Max): 130mA, 130mA
  • Voltage - Input (Min): 4.5V
  • Voltage - Input (Max): 9V
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Power (Watts): 3W
  • Efficiency: 74%
  • Mounting Type: Through Hole
