Same model may have multiple batches, images only for reference.

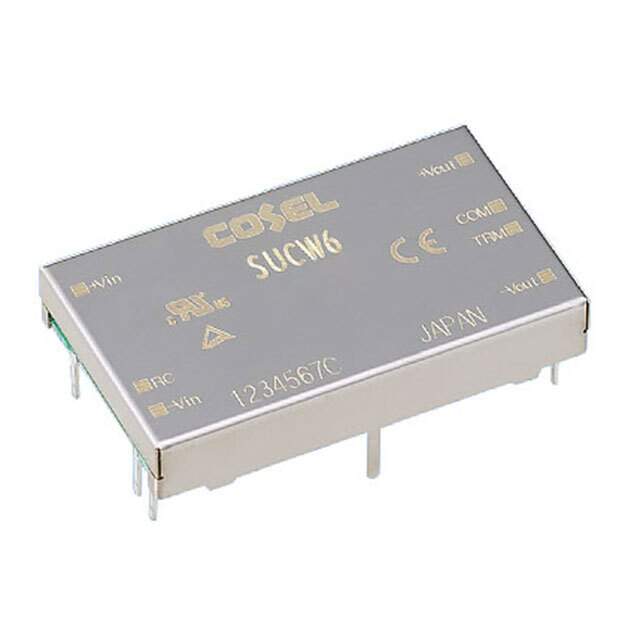

SUCW61212C Real Image
Same model may have multiple batches, images only for reference.

SUCW61212C

Part No SUCW61212C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 9V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Cosel USA, Inc.
Packaging Box
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 250mA, 250mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Through Hole
Case / Package 7-DIP Module
Size / Dimension 1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm)
Base Product Number SUCW61212
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1776-1652
Standard Package 1
Win Source Part Number 1335352-SUCW61212C
Ultra Librarian 3D Model Ultra Librarian SUCW61212C CAD Model

Description

The Cosel USA, Inc. SUCW61212C is an isolated module type DC-DC converter with a size of 1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm).

  • Voltage Isolation: 500V
  • Outputs: Two
  • Maximum Output Current: 250mA each
  • Input Voltage Range: 9V to 18V
  • Output Voltage: 12V and -12V
  • Efficiency: 85%
  • Temperature Range: -40°C ~ 85°C (With Derating)
  • Category: Power Supplies - Board Mount>DC DC Converters
  • Packaging: Box
  • ROHS Compliance: ROHS3 compliant
