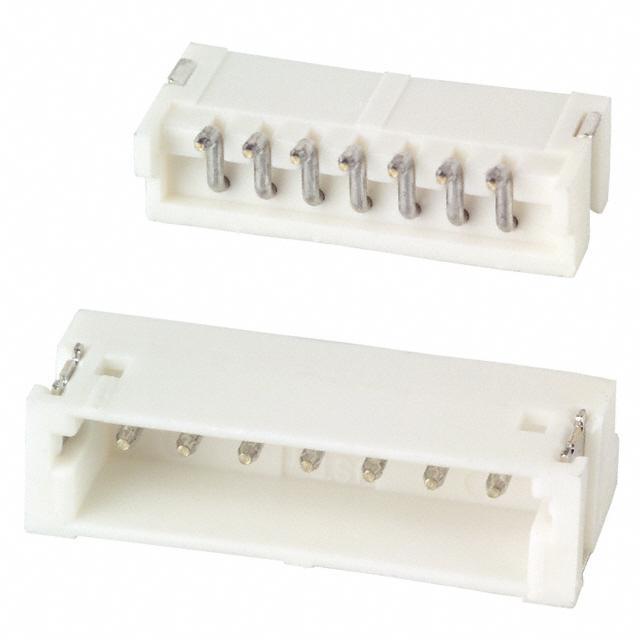

S7B-ZR-SM4A-TF(LF)(SN)

Part No S7B-ZR-SM4A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER ZH SIDE 7POS 1.5MM
Datasheet
S7B-ZR-SM4A-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 7
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.146" (3.71mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 3.7mm
Win Source Part Number 101171-S7B-ZR-SM4A-TF(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian S7B-ZR-SM4A-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. 101171-S7B-ZR-SM4A-TF(LF)(SN) is a high-popularity electronic component with a sufficient supply and demand status.

  • Features: solder retention, right-angle mounting, and shrouded-4 wall shrouding
  • Connector Type: header
  • Contact Type: male pin
  • Positions Loaded: 7
  • Number of Rows: 1
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: polyamide (PA6T), nylon 6T
  • Operating Temperature Range: -25°C to 85°C
