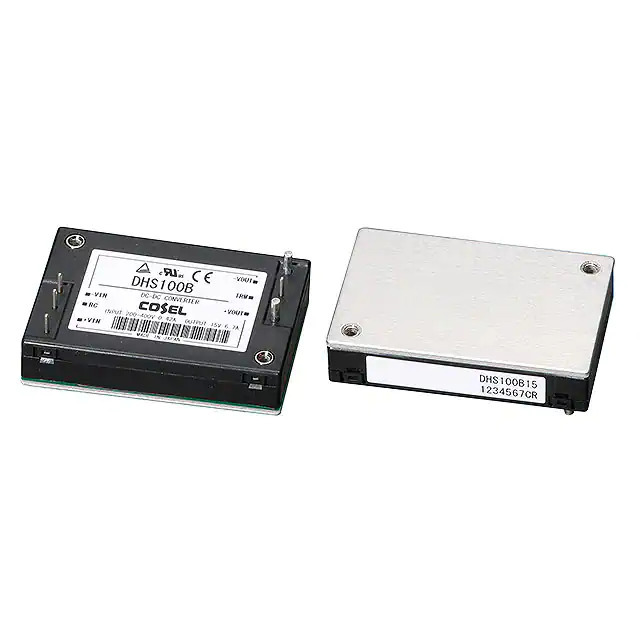

Same model may have multiple batches, images only for reference.
DHS100B03 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

DHS100B03

Part No DHS100B03
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 66W / Isolated Module DC DC Converter 1 Output 3.3V 20A 200V - 400V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series DHS (100W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 200V
Voltage - Input (Max) 400V
Voltage - Output 1 3.3V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 20A
Power (Watts) 66 W
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 79%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm)
Supplier Device Package -
Base Product Number DHS100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1355420-DHS100B03
Ultra Librarian 3D Model Ultra Librarian DHS100B03 CAD Model

Description

The Cosel USA DHS100B03 is a 100W isolated power supply module from the DHS series.

  • Series: DHS
  • Power: 100W
  • Package: 6-DIP module
  • Mounting Type: Board Mount
  • Operating Temperature: -40°C to 100°C
  • Output Current: 20A (Max)
  • Power Rating: 66W
  • Input Voltage: 200V to 400V
  • Output Voltage: 3.3V
  • Mounting: Through-hole
  • Application: ITE (Commercial)
  • Efficiency: 79%
  • Size: 2.30" L x 1.47" W x 0.50" H
