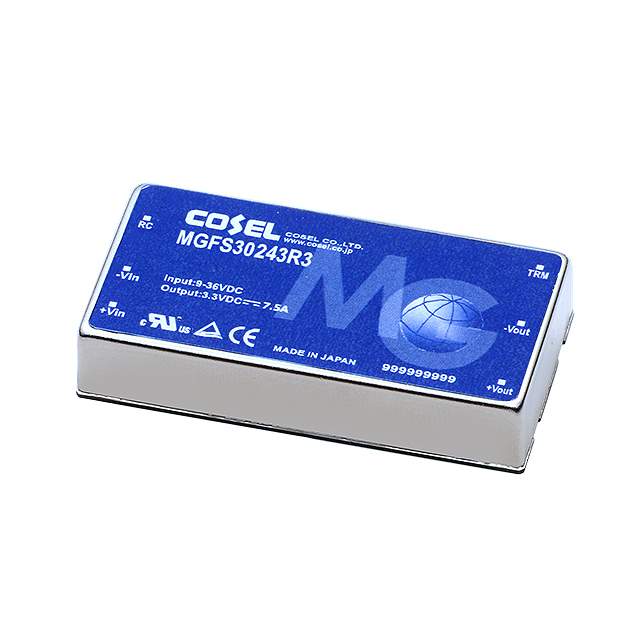

Same model may have multiple batches, images only for reference.

MGFS302405-G

Name: MGFS302405-G
Brand: Cosel USA, Inc.
SKU: 1018990
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MGFS302405-G
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 30W / Isolated Module DC DC Converter 1 Output 5V 6A 9V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	MGFS (30W)
Package	Box
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	6A
Power (Watts)	30 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	90%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
Base Product Number	MGFS302405
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	1
Win Source Part Number	1018990-MGFS302405-G
Ultra Librarian 3D Model	Ultra Librarian MGFS302405-G CAD Model

Alternative Products

Description

The Cosel USA, Inc. 949814 is a 30W isolated module DC-DC converter from the MGFS series.

Voltage Isolation: 1.5kV
Efficiency: 90%
Outputs: 1
Maximum Output Current: 6A
Operating Temperature: -40°C to 85°C
Package: 6-DIP module
