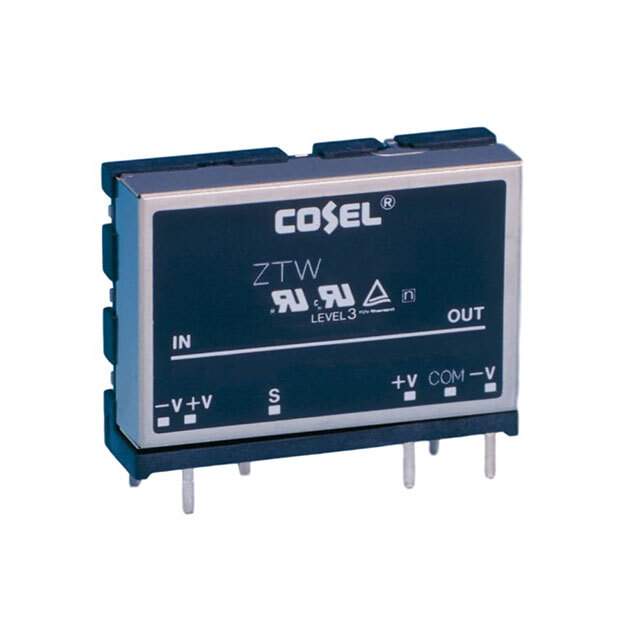

Same model may have multiple batches, images only for reference.

ZTW30512

Name: ZTW30512
Brand: Cosel USA, Inc.
SKU: 1025390
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZTW30512
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 24V 3.1W / Isolated Module DC DC Converter 2 Output 12V -12V 24V 130mA, 130mA 4.5V - 9V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZTW (3W)
Package	Box
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Voltage - Output 3	24V
Current - Output (Max)	130mA, 130mA
Power (Watts)	3.1 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	70%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.40" L x 0.39" W x 1.02" H (35.5mm x 10.0mm x 26.0mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-2883,ZTW30512-ND
Standard Package	1
Win Source Part Number	1025390-ZTW30512
Ultra Librarian 3D Model	Ultra Librarian ZTW30512 CAD Model

Alternative Products

Description

The Cosel USA ZTW30512 is an isolated module type DC DC converter with a power output of 3.1W.

Series: ZTW
Package: Box
Category: Power supplies-board mount>DC DC converters
Applications: ITE (commercial)
Standard Package: 1
Voltage-Isolation: 500 V
Number of Outputs: 2
Voltage-Output 1: 12V
Voltage-Output 2: -12V
Efficiency: 70%
Mounting Type: Through hole
Package/Case: 6-DIP module
Temperature Range-Operating: -20°C ~ 71°C (with derating)
Dimension: 1.40" L x 0.39" W x 1.02" H (35.5mm x 10.0mm x 26.0mm)
HTSUS: 8504.40.9580
