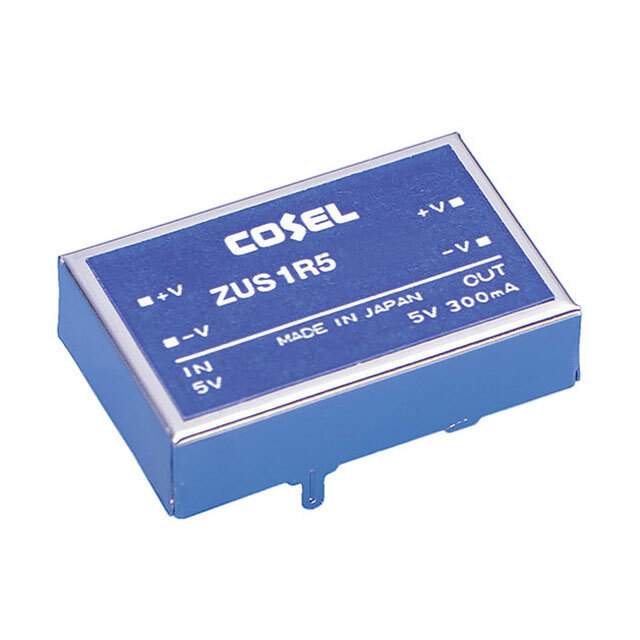

ZUS1R52405 Real Image
Same model may have multiple batches, images only for reference.

ZUS1R52405

Part No ZUS1R52405
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Module DC-DC 24VIN 1-OUT 5V 0.3A 1.5W 4-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Cosel USA, Inc.
Series ZUS
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 18V
Voltage Input MAX 36V
Voltage - Output 1 5V
Current - Output (Maximum) 300mA
Voltage - Isolation 500V
Applications ITE (Commercial)
Features OCP
Operating Temperature Range -20°C ~ 71°C (With Derating)
Efficiency 71%
Mounting Style Through Hole
Package 4-DIP Module
Dimension 1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm)
Win Source Part Number 800420-ZUS1R52405
Popularity Medium
Supply and Demand Status Limited
Family Name ZUS1R52405
Introduction Date May 06, 2007
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ZUS1R52405 CAD Model

Description

The Cosel USA, Inc. ZUS1R52405 is an isolated module type electronic component that comes in a 4-DIP module package.

  • Package: 4-DIP
  • Isolation Voltage: 500V
  • Output Voltage: 5V
  • Efficiency: 71%
  • Applications: ITE (Commercial)
  • Supply and Demand Status: Limited
