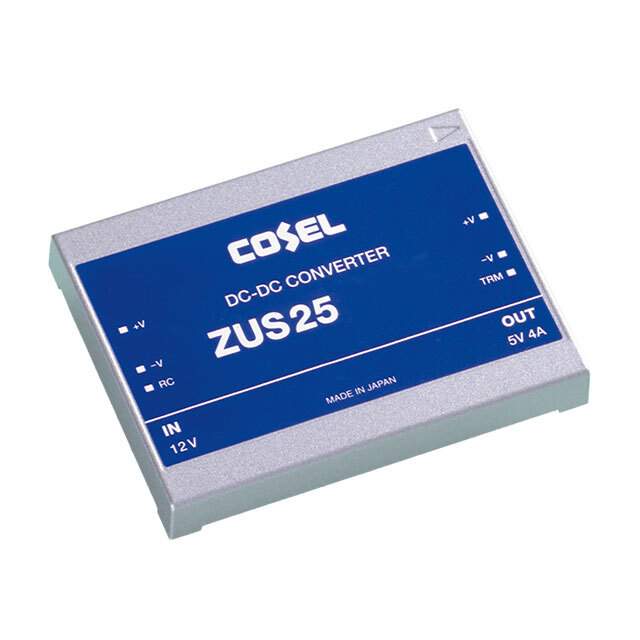

Same model may have multiple batches, images only for reference.

ZUS251205

Name: ZUS251205
Brand: Cosel USA, Inc.
SKU: 1217297
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZUS251205
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 4A 9V - 18V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUS (25W)
Package	Box
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	5V
Current - Output (Max)	4A
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	82%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.56" L x 1.97" W x 0.33" H (65.0mm x 50.0mm x 8.5mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1850
Standard Package	1
Win Source Part Number	1217297-ZUS251205
Ultra Librarian 3D Model	Ultra Librarian ZUS251205 CAD Model

Alternative Products

Description

The Cosel USA, Inc. ZUS251205 is a power supply device that belongs to the ZUS series.

Series: ZUS
Type: Isolated Module
Features: Remote On/Off, OCP, OVP Protection
Voltage Isolation: 500V
Current Output: 4A
Voltage Input: 9V to 18V
Voltage Output: 5V
Efficiency: 82%
Applications: ITE (Commercial)
Mounting: Through Hole
Package/Case: 6-DIP Module
Operating Temperature: -20°C to 71°C (With Derating)
Dimension: 2.56" L x 1.97" W x 0.33" H (65.0mm x 50.0mm x 8.5mm)
