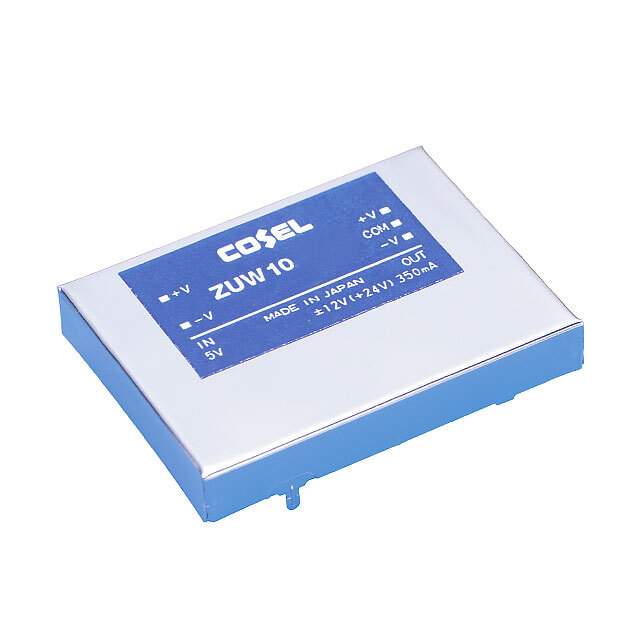

Same model may have multiple batches, images only for reference.

ZUW101215

Name: ZUW101215
Brand: Cosel USA, Inc.
SKU: 1225244
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZUW101215
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V / Isolated Module DC DC Converter 2 Output 15V -15V 350mA, 350mA 9V - 18V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUW (10W)
Package	Box
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	350mA, 350mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	OCP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	81%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Dimension	1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1884
Standard Package	1
Win Source Part Number	1225244-ZUW101215
Ultra Librarian 3D Model	Ultra Librarian ZUW101215 CAD Model

Alternative Products

Description

The ZUW101215 is a 10W isolated module DC-DC converter that comes with two output channels.

Application: Power supplies for board mount DC-DC converters
Series: ZUW
Voltage Isolation: 500V
Package: 5-DIP module
Operating Temperature Range: -20°C to 71°C with derating
Power: 10W
