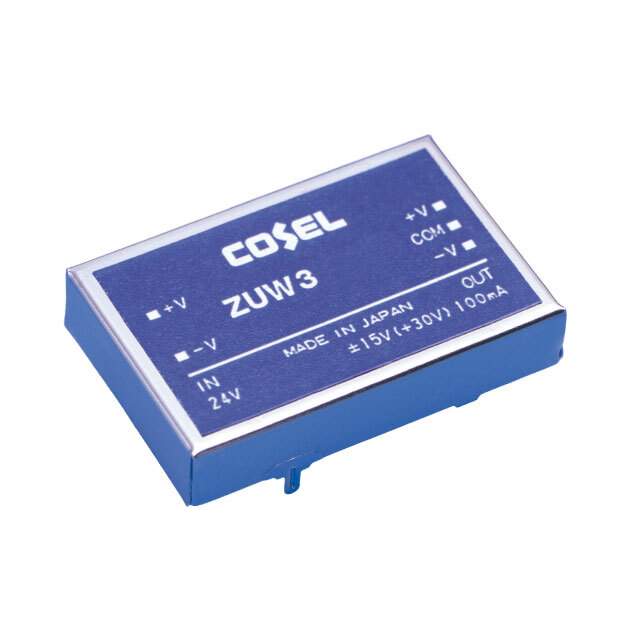

Same model may have multiple batches, images only for reference.

ZUW31215

Name: ZUW31215
Brand: Cosel USA, Inc.
SKU: 1028766
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZUW31215
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 9V - 18V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUW (3W)
Package	Box
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	OCP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	74%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Dimension	1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1916
Standard Package	1
Win Source Part Number	1028766-ZUW31215
Ultra Librarian 3D Model	Ultra Librarian ZUW31215 CAD Model

Alternative Products

Description

The Cosel USA ZUW31215 is an Isolated Module with Through Hole mounting style.

Application: ITE (Commercial)
Input Voltage: 9V to 18V
Features: OCP
Output 1 Voltage: 15V
Output 2 Voltage: -15V
Maximum Output Current: 100mA (each output)
Isolation Voltage: 500V
Efficiency: 74%
Operating Temperature: -20°C to 71°C (With Derating)
Package: 5-DIP Module
Dimensions: 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm)
Ideal for: Power supplies - board mount applications.
