Same model may have multiple batches, images only for reference.

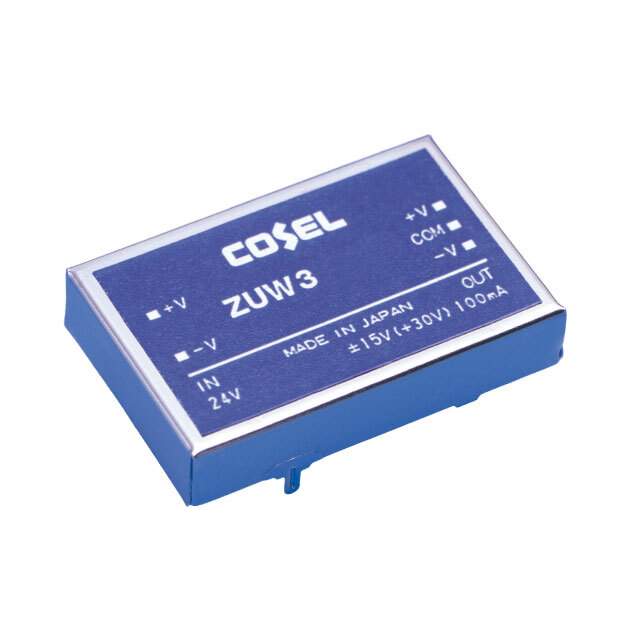

ZUW32415 Real Image
Same model may have multiple batches, images only for reference.

ZUW32415

Part No ZUW32415
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V / Module DC-DC 24VIN 2-OUT 15V/-15V 0.1A 3W 5-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Cosel USA, Inc.
Series ZUW
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 18V
Voltage Input MAX 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 100mA, 100mA
Voltage - Isolation 500V
Applications ITE (Commercial)
Features OCP
Operating Temperature Range -20°C ~ 71°C (With Derating)
Efficiency 74%
Mounting Style Through Hole
Package 5-DIP Module
Dimension 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm)
Win Source Part Number 800431-ZUW32415
Popularity Medium
Supply and Demand Status Limited
Family Name ZUW32415
Introduction Date May 01, 2001
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ZUW32415 CAD Model

Description

The Cosel USA, Inc. ZUW32415 isolated module is a through-hole mounting style device designed for use in ITE (Commercial) applications.

  • Mounting Type: Through-hole
  • Applications: ITE (Commercial)
  • Output 1 Voltage: 15V
  • Output 2 Voltage: -15V
  • Efficiency: 74%
  • Operating Temperature Range: -20°C to 71°C (with derating)
  • Isolation Voltage: 500V
  • Maximum Output Current (per output): 100mA
  • Package: 5-DIP
  • Dimensions: 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm)
