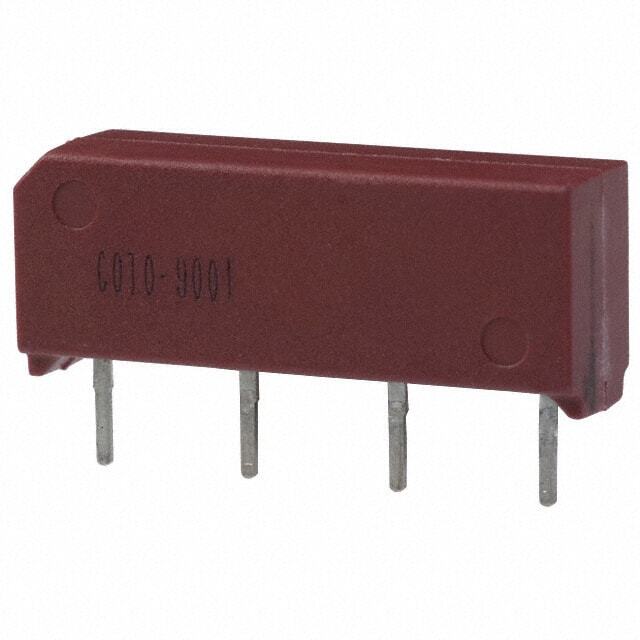

Same model may have multiple batches, images only for reference.
9001-05-00
Same model may have multiple batches, images only for reference.

9001-05-00

Part No 9001-05-00
Manufacturer Coto Technology
Catalog Reed Relays
Description RELAY REED SPST 500MA 5V
Datasheet
9001-05-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Coto Technology
Series 9000
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 10 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.4 VDC
Operate Time 0.35 ms
Release Time 0.1 ms
Temperature Range - Operating -20°C ~ 85°C
Coil Resistance 500 Ohms
Base Product Number 9001
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 858562-9001-05-00
Ultra Librarian 3D Model Ultra Librarian 9001-05-00 CAD Model

Description

The 9000 series reed relay, identified by part number 858562-9001-05-00, is a high-quality electronic component suitable for various applications.

  • Termination Style: PC Pin
  • Package: Tube
  • Contact Form: Single-Pole, Single-Throw Normally Open
  • Contact Rating: 500 mA
  • Coil Resistance: 500 Ohms
  • Coil Current: 10 mA
  • Coil Voltage: 5VDC
  • Switching Voltage: 200VAC, 200VDC
  • Release Time: 0.1 ms
  • Temperature Range: -20°C to 85°C
  • Manufacturer: Coto Technology
  • Series: Active
  • Standard Package: 25 pcs
  • MSL Level: 1
  • HTSUS Code: 8536.41.0030
