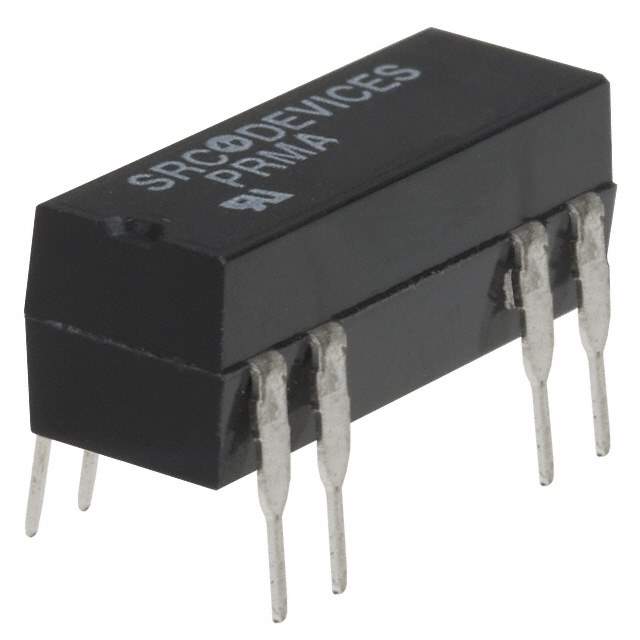

The Coto Technology 280482-PRMA2A12 is a DPST (2 Form A) reed relay with a through-hole mounting style.

• Mounting Style: Through-hole
• Coil Resistance: 500 Ohms
• Coil Current: 24mA
• Operate Time: 0.5ms
• Release Time: 0.5ms
• Relay Type: Reed
• Coil Type: Non-latching
• Coil Voltage: 12VDC
• Contact Rating (current): 500mA
• Switching Voltage: 200VAC and 200VDC max
• Turn On Voltage (max): 9 VDC
• Turn Off Voltage (min): 1 VDC
• Coil Power: 288 mW
• Temperature Range: -40°C to 80°C
• Applications: Industrial, security, communications, and networking applications
• Product Status: Obsolete (EOL)
• Popularity: Medium
• Supply and Demand Status: Limited
