Same model may have multiple batches, images only for reference.

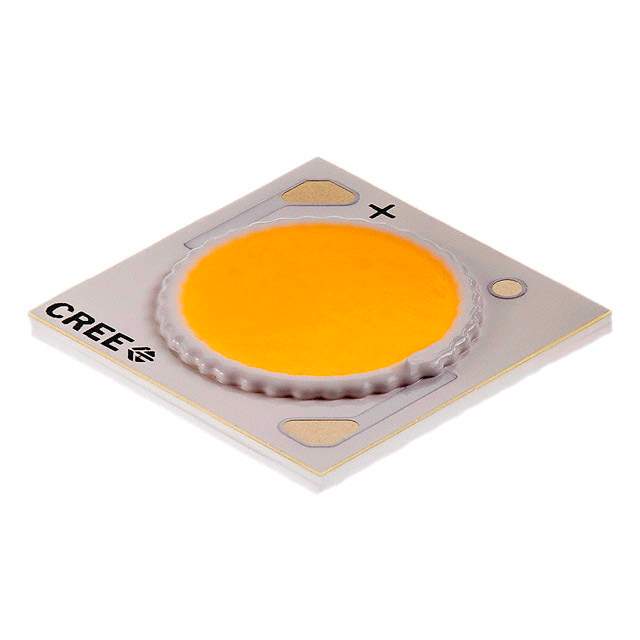

CXA1816-0000-000N00N427G Real Image
Same model may have multiple batches, images only for reference.

CXA1816-0000-000N00N427G

Part No CXA1816-0000-000N00N427G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description XLamp LED
Datasheet
CXA1816-0000-000N00N427G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1816
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1770 lm (1710 lm ~ 1830 lm)
Current - Test 450mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 109 lm/W
Current - Max 900mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 1163782-CXA1816-0000-000N00N427G
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1816-0000-000N00N427G
ECCN EAR99
Estimated EOL Date Unknown
Ultra Librarian 3D Model Ultra Librarian CXA1816-0000-000N00N427G CAD Model

Description

The Cree XLamp CXA1816 is a chip on board (COB) type electronic component that comes in a square configuration.

  • Type: Chip on Board (COB)
  • Configuration: Square
  • Color: White and Warm
  • Current-Max: 900mA
  • Viewing Angle: 115 degrees
  • Voltage-Forward (Vf): 36V
  • Part Number: CXA1816-0000-000N00N427G
  • Series: XLamp CXA1816
  • Packaging: Trays
  • Height: 1.70mm
  • Size: 17.85mm L x 17.85mm W
  • Lens Type: Flat
  • Light Emitting Surface (LES) Diameter: 12.00mm
  • Color Rendering Index (CRI): 80
  • Correlated Color Temperature (CCT): 2700K
  • CCT MacAdam Ellipse: 3-step
  • Luminous Efficacy: 109 lm/W @ 450mA
  • Flux: 1770 lm (1710 lm ~ 1830 lm) @ 450mA and 85 degrees Celsius
