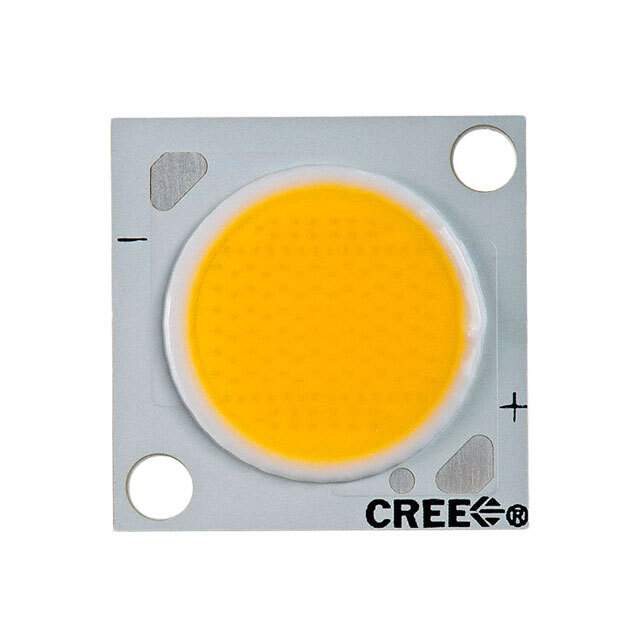

CXA2011-0000-000P00F027H Real Image
Same model may have multiple batches, images only for reference.

CXA2011-0000-000P00F027H

Part No CXA2011-0000-000P00F027H
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description Cree® XLamp® CXA2011 LED
Datasheet
CXA2011-0000-000P00F027H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA2011
Packaging Tube
Part Status Obsolete(EOL)
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 2-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 730 lm (680 lm ~ 780 lm)
Current - Test 270mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 40V
Lumens/Watt @ Current - Test 68 lm/W
Current - Max 1A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Size 22.00mm L x 22.00mm W
Height 2.28mm
Lens Type Flat
Win Source Part Number 1163791-CXA2011-0000-000P00F027H
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Limited
Family Name CXA2011-0000-000P00F027H
Introduction Date April 12, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CXA2011-0000-000P00F027H CAD Model

Description

The Cree Inc. CXA2011-0000-000P00F027H is a chip on board (COB) type of electronic component that has a square configuration and a viewing angle of 120°.

  • Type: Chip on Board (COB)
  • Configuration: Square
  • Viewing Angle: 120°
  • Current (Max): 1A
  • Voltage Forward (Vf): 40V
  • CCT: 2700K 2-Step MacAdam Ellipse
  • CRI: 80
  • Flux: 730 lm (680 lm ~ 780 lm)
  • RoHS: Non-compliant
  • Status: Obsolete (EOL)
