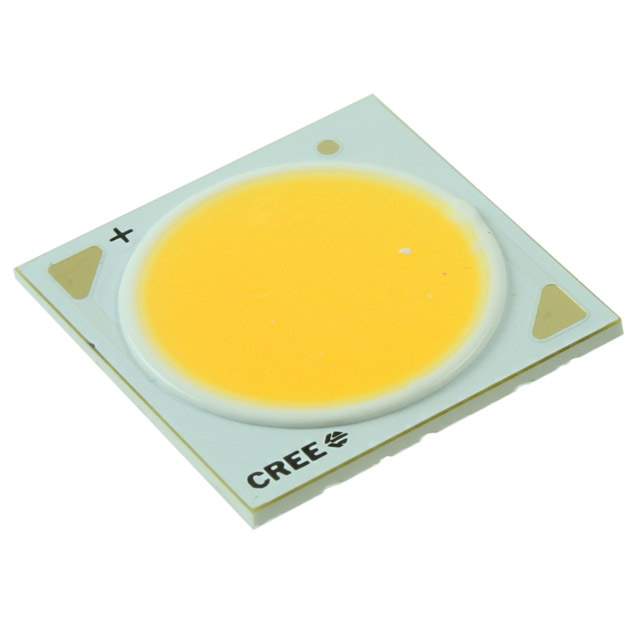

CXA2530-0000-000N0HT440G Real Image
Same model may have multiple batches, images only for reference.

CXA2530-0000-000N0HT440G

Part No CXA2530-0000-000N0HT440G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA2530 4000K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA2530-0000-000N0HT440G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA2530
Packaging Tray
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 3560 lm (3440 lm ~ 3680 lm)
Current - Test 800mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 124 lm/W
Current - Max 1.6A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Diameter
Lens Type Flat
Win Source Part Number 771980-CXA2530-0000-000N0HT440G
Popularity Medium
Supply and Demand Status Limited
Family Name CXA2530-0000-000N0HT440G
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA2530-0000-000N0HT440G CAD Model

Description

The Cree XLamp CXA2530 is a high-performance chip-on-board (COB) LED that is ideal for a wide range of lighting applications.

  • Current Rating: 1.6A
  • Voltage Forward: 36V (typical)
  • Maximum Luminous Flux: 3560 lumens
  • Color Temperature: 4000K
  • Configuration: Square
  • Lens Type: Flat
  • Viewing Angle: 115 degrees
  • LES Diameter: 19.00mm
  • Height: 1.70mm
  • Lumens per Watt: 124 lm/W @ 800mA
  • Series: XLamp
  • Packaging: Tray
