Same model may have multiple batches, images only for reference.

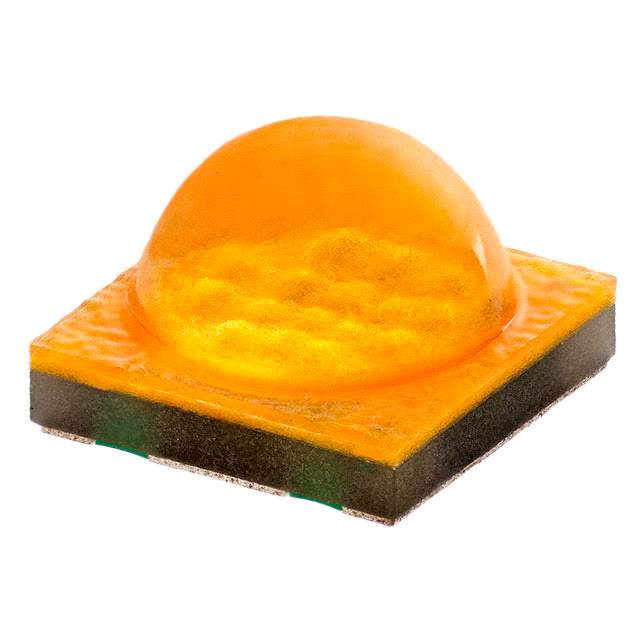

XTEHVW-H0-0000-00000LCE7 Real Image
Same model may have multiple batches, images only for reference.

XTEHVW-H0-0000-00000LCE7

Part No XTEHVW-H0-0000-00000LCE7
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description LED XLAMP WARM WHITE 3000K 2SMD
Datasheet
XTEHVW-H0-0000-00000LCE7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Color White, Warm
CCT (K) 3000K
Flux @ 85°C, Current - Test 104 lm (100 lm to 107 lm)
Current - Test 44mA
Forward Voltage 24V
Lumens/Watt @ Current - Test 98 lm/W
CRI (Color Rendering Index) 82 (Typ)
Current - Max 125mA
Viewing Angle 115°
Mounting SMD (SMT)
Height - Seated (Max) 0.098" (2.49mm)
Thermal Resistance of Package 5°C/W
Win Source Part Number 1119686-XTEHVW-H0-0000-00000LCE7
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian XTEHVW-H0-0000-00000LCE7 CAD Model

Description

The Cree Inc. This product is packaged in a reel-TR and has a color of white, warm.

  • Height: 0.098 inches
  • Mounting: SMD (SMT)
  • Maximum Current: 125mA
  • Forward Voltage: 24V
  • Viewing Angle: 115 degrees
  • CCT: 3000K
  • Flux @ 85°C, Current - Test: 104 lm (100 lm to 107 lm)
  • Lumens/Watt @ Current - Test: 98 lm/W
  • CRI: 82 (Typ)
  • Thermal Resistance: 5 degrees Celsius per watt
