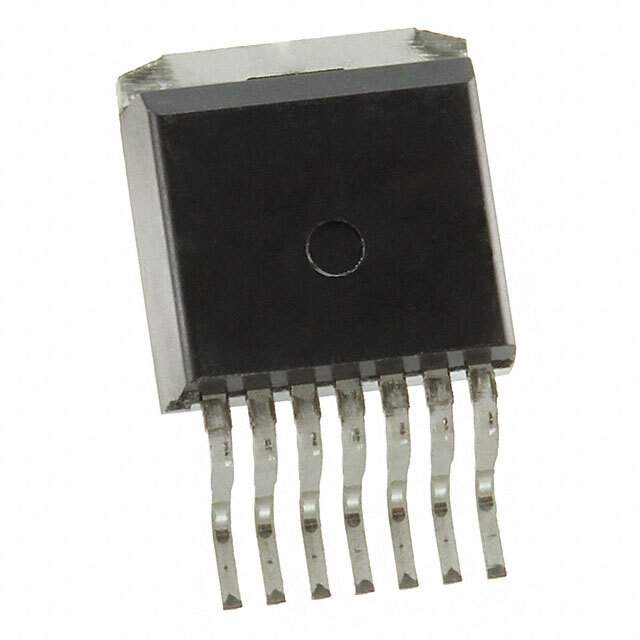

C2M1000170J Real Image
Same model may have multiple batches, images only for reference.

C2M1000170J

Part No C2M1000170J
Manufacturer Cree/Wolfspeed
Catalog Transistors - FETs, MOSFETs - RF
Datasheet
C2M1000170J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Wolfspeed, Inc.
Series C2M™
Package Bulk
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1700 V
Current - Continuous Drain (Id) @ 25°C 5.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 20V
Rds On (Max) @ Id, Vgs 1.4Ohm @ 2A, 20V
Vgs(th) (Max) @ Id 3.1V @ 500µA (Typ)
Gate Charge (Qg) (Max) @ Vgs 13 nC @ 20 V
Vgs (Max) +25V, -10V
Input Capacitance (Ciss) (Max) @ Vds 200 pF @ 1000 V
Power Dissipation (Max) 78W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package D2PAK (7-Lead)
Package / Case TO-263-7 (Straight Leads)
Base Product Number C2M1000170
Standard Package 50
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1277486-C2M1000170J
Ultra Librarian 3D Model Ultra Librarian C2M1000170J CAD Model

Description

The Win Source Part Number 1277486-C2M1000170J is a SiCFET transistor with an N-Channel FET type.

  • Drain to Source Voltage: 1700V
  • Continuous Drain Current @ 25°C: 5.3A
  • Package: Bulk
  • Standard Package: 50
  • Mounting Type: SMD (SMT)
  • Technology: Silicon Carbide
  • Series: C2M
  • Package: TO-263-7 (Straight Leads)
  • Supplier Device Package: D2PAK (7-Lead)
  • Maximum Power Dissipation: 78W
  • Gate Charge @ 20V: 13 nC
  • Input Capacitance @ 1000V: 200 pF
  • Temperature Range: -55°C to 150°C (TJ)
  • MSL Level: 3 (168 hours)
  • HTSUS: 8541.29.0095
