Same model may have multiple batches, images only for reference.

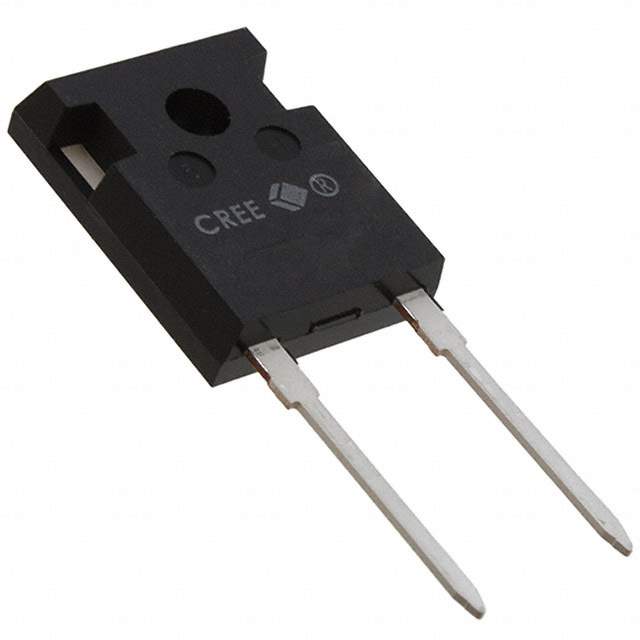

C3D25170H Real Image
Same model may have multiple batches, images only for reference.

C3D25170H

Part No C3D25170H
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 1.7KV 26.3A TO247 / Diode Silicon Carbide Schottky 1700 V 26.3A (DC) Through Hole TO-247-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Wolfspeed, Inc.
Series Z-Rec®
Package Tube
Product Status Obsolete
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1700 V
Current - Average Rectified (Io) 26.3A (DC)
Voltage - Forward (Vf) (Max) @ If 2.5 V @ 25 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 100 µA @ 1700 V
Capacitance @ Vr, F 2079pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247-2
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number C3D25170
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 30
Win Source Part Number 1050836-C3D25170H
Ultra Librarian 3D Model Ultra Librarian C3D25170H CAD Model

Description

The C3D25170H is a silicon carbide Schottky diode from the Z-Rec series of Wolfspeed, Inc.

  • Maximum DC Reverse Voltage: 1700 V
  • Forward Voltage: 2.5 V @ 25 A
  • Recovery Time: No recovery time
  • Average Rectified Current: 26.3 A
  • Reverse Recovery Time: 0 ns
  • Reverse Leakage Current: 100 µA @ 1700 V
  • Capacitance: 2079 pF @ 0 V and 1 MHz
  • Operating Temperature Range: -55°C to 175°C
  • Mounting: Through Hole
  • Package Type: TO-247-2
  • Packaging: Tube of 30
  • Product Status: Obsolete
  • ECCN: EAR99
