Same model may have multiple batches, images only for reference.

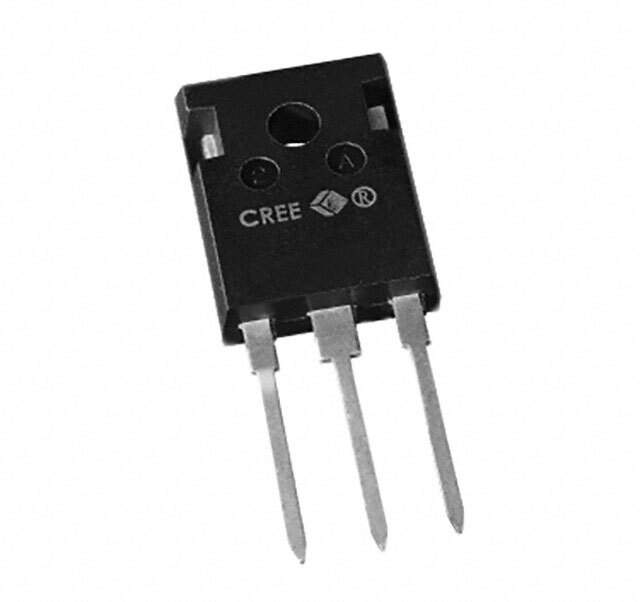

C3M0016120D Real Image
Same model may have multiple batches, images only for reference.

C3M0016120D

Part No C3M0016120D
Manufacturer Cree/Wolfspeed
Catalog Transistors - FETs, MOSFETs - RF
Description SICFET N-CH 1200V 115A TO247-3 / N-Channel 1200 V 115A (Tc) 556W (Tc) Through Hole TO-247-3
Datasheet
C3M0016120D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer Wolfspeed, Inc.
Packaging Tube
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V
Current - Continuous Drain (Id) @ 25°C 115A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 15V
Rds On (Max) @ Id, Vgs 22.3mOhm @ 75A, 15V
Vgs(th) (Max) @ Id 3.6V @ 23mA
Gate Charge (Qg) (Max) @ Vgs 207 nC @ 15 V
Vgs (Max) +15V, -4V
Input Capacitance (Ciss) (Max) @ Vds 6085 pF @ 1000 V
Power Dissipation (Max) 556W (Tc)
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Through Hole
Supplier Device Package TO-247-3
Case / Package TO-247-3
Base Product Number C3M0016120
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number -3312-C3M0016120D,1697-C3M0016120D
Standard Package 30
Win Source Part Number 1324429-C3M0016120D
Ultra Librarian 3D Model Ultra Librarian C3M0016120D CAD Model

Description

The Wolfspeed C3M0016120D is a SiCFET N-channel transistor with a drain to source voltage of 1200V and a continuous drain current of 115A.

  • Drain to Source Voltage: 1200V
  • Continuous Drain Current: 115A
  • Maximum On-Resistance: 22.3mOhm @ 75A and 15V gate-source voltage
  • Package: TO-247-3
  • Mounting Type: Through-hole
  • Input Capacitance: 6085pF @ 1000Vds
  • Gate Charge: 207nC @ 15Vgs
  • RoHS3 Compliant: Yes
  • Temperature Range: -40°C to 175°C
