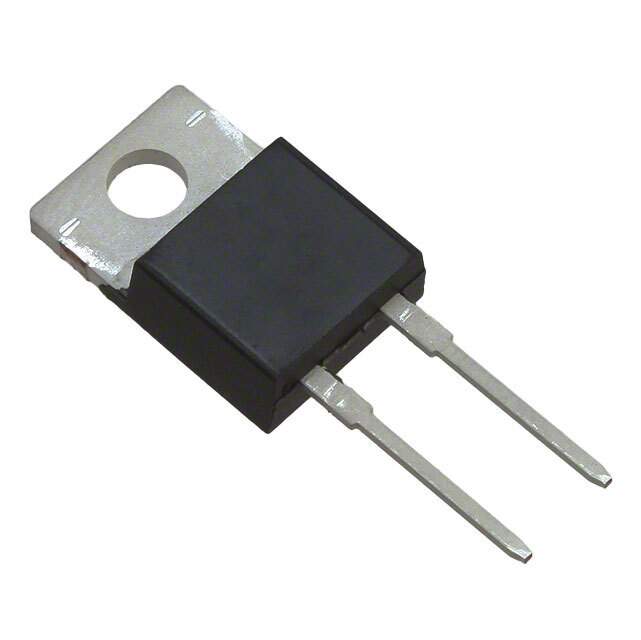

C4D15120A Real Image
Same model may have multiple batches, images only for reference.

C4D15120A

Part No C4D15120A
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 1.2KV 10A TO220-2
Datasheet
C4D15120A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 8 Weeks
Features Diode Silicon Carbide Schottky 1200 V 43.5A (DC) Through Hole TO-220-2
Manufacturer Cree/Wolfspeed
Series Z-Rec®
Package Tube
Speed No Recovery Time > 500mA (Io)
Mounting Through Hole
Package TO-220-2
Case / Package TO-220-2
Family Name C4D15120
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 865641-C4D15120A
Ultra Librarian 3D Model Ultra Librarian C4D15120A CAD Model

Description

The Cree/Wolfspeed C4D15120A is a silicon carbide Schottky diode that belongs to the Z-Rec® series.

  • Voltage: 1200V
  • Current: 43.5A (DC)
  • Recovery Time: None
  • Package: TO-220-2
  • Mounting Type: Through Hole
  • Product Type: Discrete Semiconductor
  • Family Name: C4D15120
  • Supply and Demand Status: Limited
  • Package Quantity: 50 pieces
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 8 weeks
  • REACH: Unaffected
  • HTSUS: 8541.10.0080
