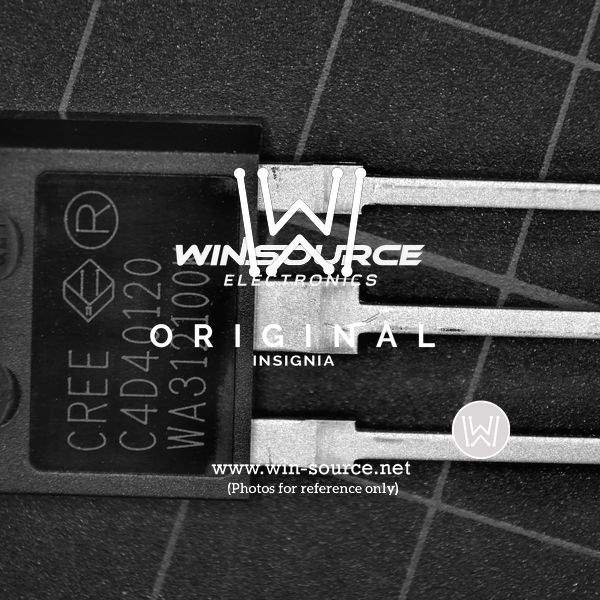

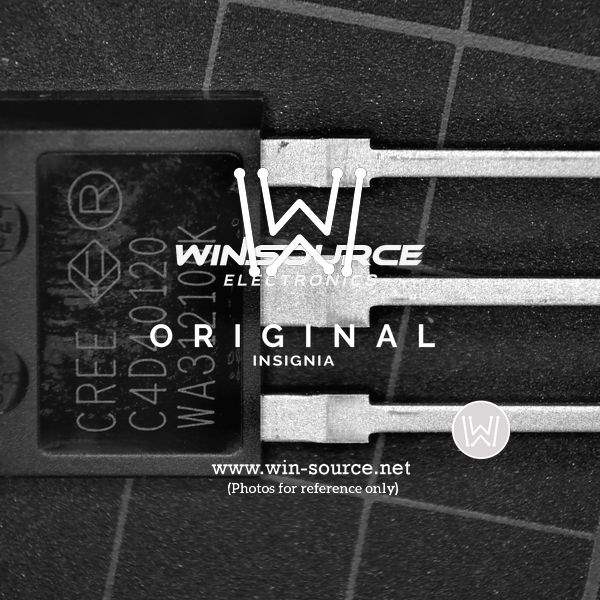

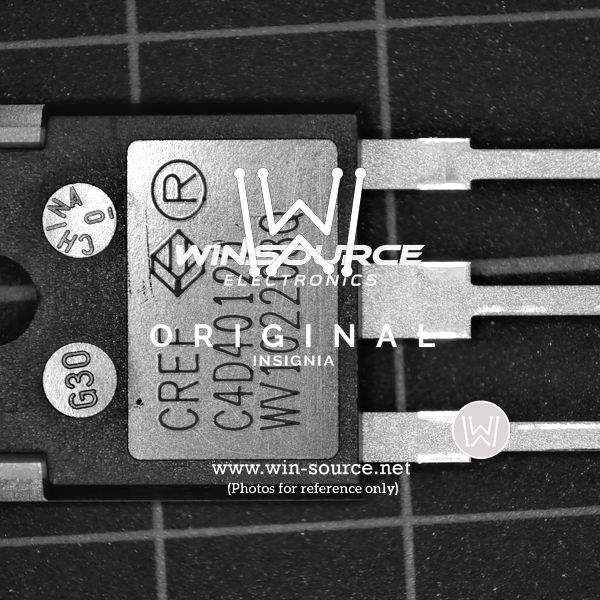

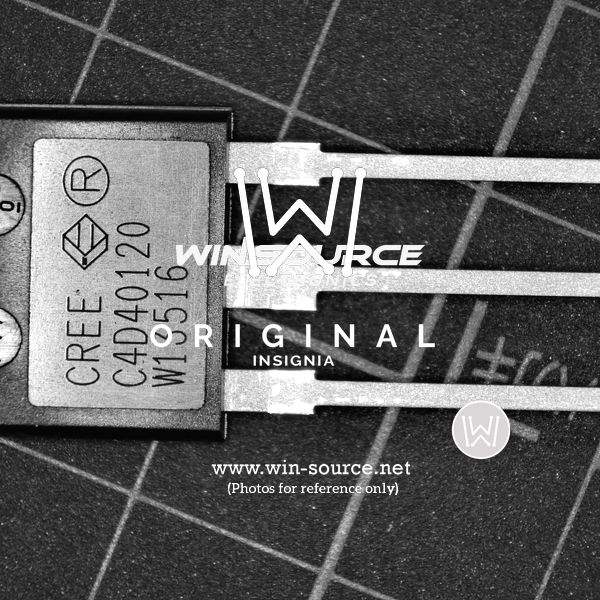

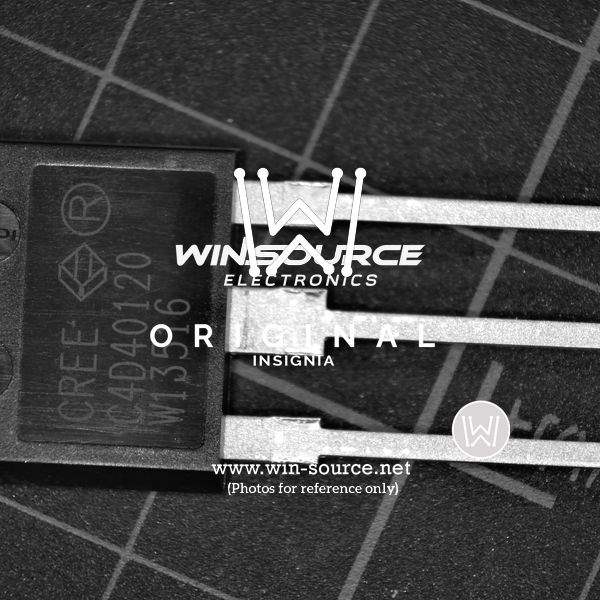

C4D40120D Cree Inc. C4D40120D Real Image1 C4D40120D Real Image2 C4D40120D Real Image3 C4D40120D Real Image4 C4D40120D Real Image5
Same model may have multiple batches, images only for reference.
C4D40120D Cree Inc. C4D40120D Real Image1 C4D40120D Real Image2 C4D40120D Real Image3 C4D40120D Real Image4 C4D40120D Real Image5
C4D40120D Cree Inc. C4D40120D Real Image1 C4D40120D Real Image2 C4D40120D Real Image3 C4D40120D Real Image4 C4D40120D Real Image5
Same model may have multiple batches, images only for reference.

C4D40120D

Part No C4D40120D
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 1200V TO247
Datasheet
C4D40120D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Cree/Wolfspeed
Series Z-Rec®
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 27A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 20 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 200 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247-3
Base Product Number C4D40120
Standard Package 30 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 575827-C4D40120D
Ultra Librarian 3D Model Ultra Librarian C4D40120D CAD Model

Description

The C4D40120D is a diode array from Cree/Wolfspeed.

  • Category: Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
  • Series: Z-Rec®
  • Technology: SiC (Silicon Carbide) Schottky
  • Voltage Rating: 1200 V
  • Forward Voltage: 1.8 V @ 20 A
  • Reverse Recovery Time: 0 ns
  • Applications: High voltage rectification, such as power supplies and inverters
  • Packaging: Tube
  • Standard Package: 30 pieces
  • Mounting: Through hole
  • Package: TO-247-3
  • Status: Active
