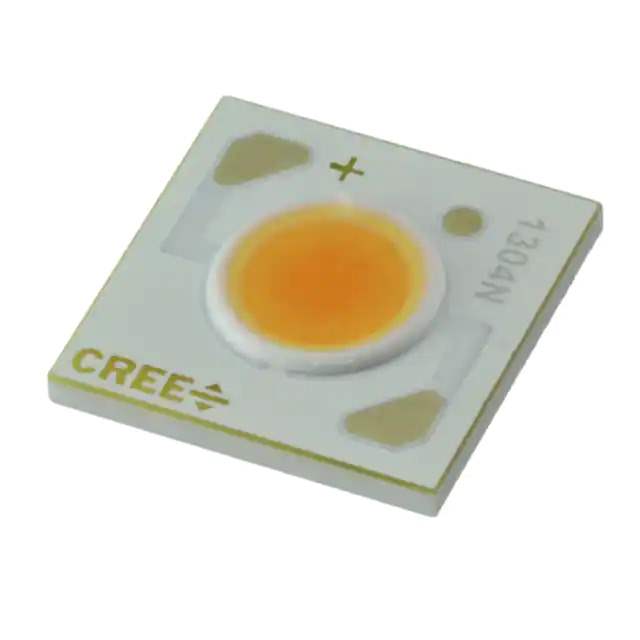

CXA1304-0000-000N0HB240F Real Image
Same model may have multiple batches, images only for reference.

CXA1304-0000-000N0HB240F

Part No CXA1304-0000-000N0HB240F
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB XLAMP NEUT WHT SQU 4000K
Datasheet
CXA1304-0000-000N0HB240F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA1304
Package Tape & Reel
Product Status Active
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 4-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 395lm (380lm ~ 410lm)
Current - Test 100mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 107 lm/W
Current - Max 250mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size / Dimension 13.35mm L x 13.35mm W
Height 1.70mm
Light Emitting Surface (LES) 6.00mm Dia
Lens Type Flat
Base Product Number CXA1304
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 916211-CXA1304-0000-000N0HB240F
Ultra Librarian 3D Model Ultra Librarian CXA1304-0000-000N0HB240F CAD Model

Description

The Win Source Part Number 916211-CXA1304-0000-000N0HB240F is an optoelectronic component from the XLamp® CXA1304 series.

  • Type: Chip on Board (COB)
  • Color Option: White
  • Package: Tape and Reel
  • Size: 13.35mm L x 13.35mm W
  • Height: 1.70mm
  • Standard Package: 100 pieces
  • Maximum Current: 250mA
  • Viewing Angle: 115°
  • Forward Voltage: 37V
  • Test Current: 100mA
  • CCT: 4000K with a 4-Step MacAdam Ellipse
  • Luminous Efficiency @ Test Current: 107 lm/W
  • CRI: 80
  • Temperature @ Test: 85°C
  • LES Diameter: 6.00mm
  • ECCN: EAR99
  • Product Status: Active
  • Luminous Flux @ Current/Temperature: 395lm (380lm ~ 410lm)
