Same model may have multiple batches, images only for reference.

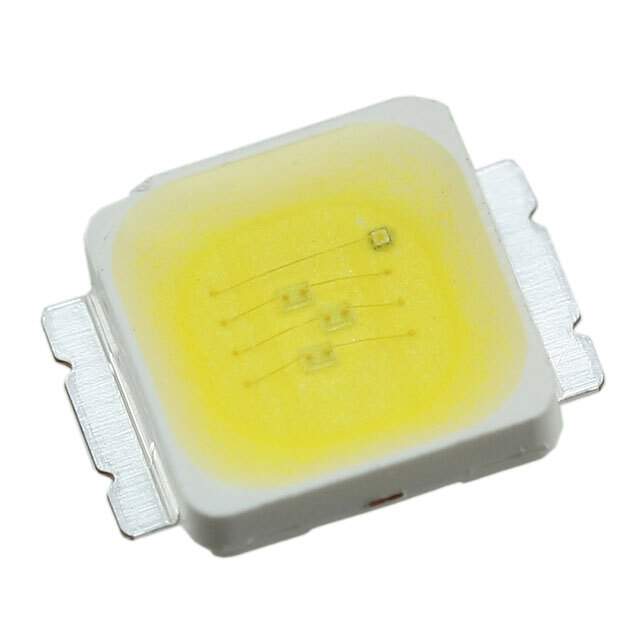

MX3AWT-A1-0000-0008A7 Real Image
Same model may have multiple batches, images only for reference.

MX3AWT-A1-0000-0008A7

Part No MX3AWT-A1-0000-0008A7
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP WARM WHITE 3250K 2SMD / LED Lighting series White, Warm 3250K 3.7V 350mA 120° 2-SMD, Gull Wing Exposed Pad
Datasheet
MX3AWT-A1-0000-0008A7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® MX-3
Package Tape & Reel (TR)
Color White, Warm
CCT (K) 3250K
Flux @ 25°C, Current - Test 77lm (74lm ~ 81lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.7V
Lumens/Watt @ Current - Test 59 lm/W
CRI (Color Rendering Index) 80 (Typ)
Current - Max 500mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2-SMD, Gull Wing Exposed Pad
Supplier Device Package SMD
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.058" (1.48mm)
Thermal Resistance of Package 11°C/W
Base Product Number MX3AWT
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 1,400
Win Source Part Number 1111671-MX3AWT-A1-0000-0008A7
Ultra Librarian 3D Model Ultra Librarian MX3AWT-A1-0000-0008A7 CAD Model

Description

The XLamp MX-3AWT-A1-0000-0008A7 is a white, warm LED lighting with a viewing angle of 120°.

  • Color: White, Warm
  • Viewing Angle: 120°
  • Forward Voltage: 3.7V
  • Maximum Current: 500mA
  • Package Size: 2-SMD, Gull Wing Exposed Pad
  • Height: 0.058” (1.48mm)
  • CCT: 3250K
  • Typical CRI: 80
  • Thermal Resistance: 11°C/W
