Same model may have multiple batches, images only for reference.

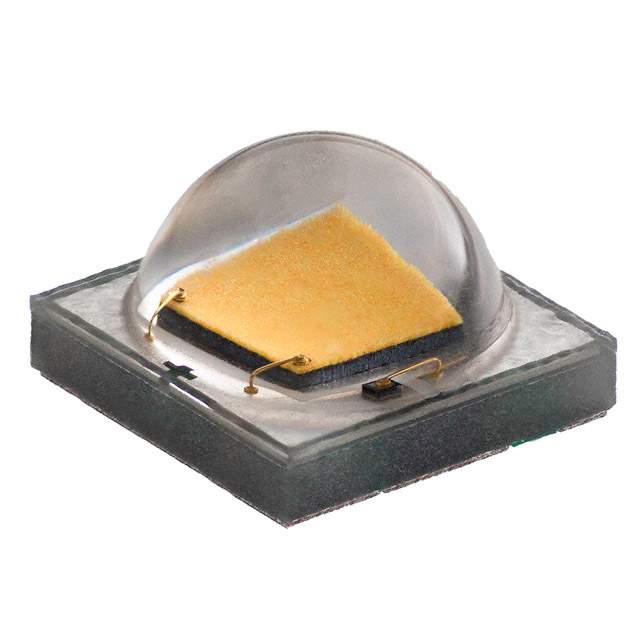

XPGBWT-L1-R250-00G51 Real Image
Same model may have multiple batches, images only for reference.

XPGBWT-L1-R250-00G51

Part No XPGBWT-L1-R250-00G51
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP COOL WHITE 6200K 2SMD / LED Lighting series White, Cool 6200K 2.72V 350mA 115° 1414 (3535 Metric)
Datasheet
XPGBWT-L1-R250-00G51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® XP-G2
Package Tape & Reel
Color White, Cool
CCT (K) 6200K
Flux @ 85°C, Current - Test 135lm (130lm ~ 139lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.72V
Lumens/Watt @ Current - Test 142 lm/W
CRI (Color Rendering Index) 70 (Typ)
Current - Max 1.5A
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Dimension 0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max) 0.094" (2.39mm)
Thermal Resistance of Package 4°C/W
Base Product Number XPGBWT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names XPGBWT-L1-R250-00G51CT,XPGBWT-L1-R250-00G51TR,XPGBWTL1R25000G51,XPGBWT-L1-R250-00G51DKR
Standard Package 250
Win Source Part Number 1151471-XPGBWT-L1-R250-00G51
Ultra Librarian 3D Model Ultra Librarian XPGBWT-L1-R250-00G51 CAD Model

Description

The CreeLED, Inc. XLamp XP-G2 is a cool white LED lighting device with a viewing angle of 115 degrees.

  • Viewing Angle: 115 Degrees
  • Height: 0.094 inches
  • Package/Case: 1414 (3535 Metric)
  • Standard Package: 250
  • Maximum Current: 1.5A
  • Voltage-Forward: 2.72V
  • CCT: 6200K
  • Flux: 135lm (130lm ~ 139lm) @ 85 degrees Celsius
  • Lumens/Watt: 142lm/w @ Current Test
  • CRI: 70
  • Thermal Resistance: 4 degrees Celsius/Watt
  • ECCN: EAR99
