Same model may have multiple batches, images only for reference.

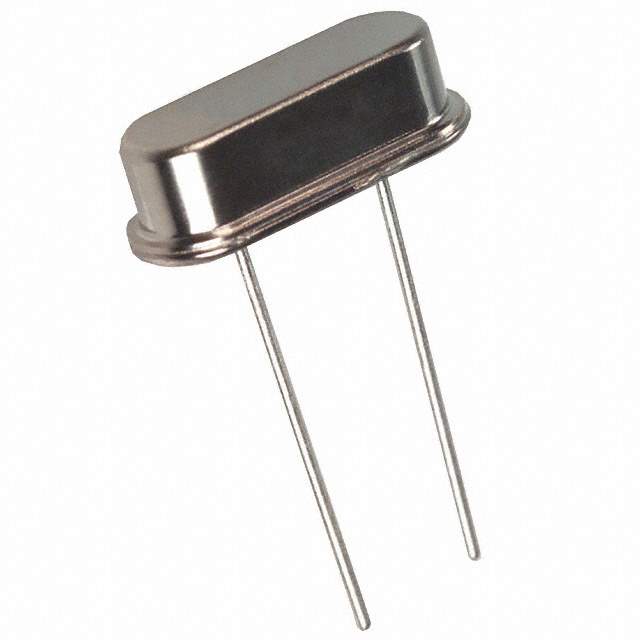

ATS081B Real Image
Same model may have multiple batches, images only for reference.

ATS081B

Part No ATS081B
Manufacturer CTS Corporation
Catalog Crystals
Description Crystal 8.192MHz 18pF 2-Pin HC/49US Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Copper, Silver, Tin
ESR (Equivalent Series Resistance) 60 Ω
Frequency 8.192 MHz
Frequency Stability 50 ppm
Frequency Tolerance 0.003 %
Height 3.683 mm
Length 10.8458 mm
Load Capacitance 18 pF
Max Operating Temperature 70 °C
Min Operating Temperature -20 °C
Mount Through Hole
Number of Pins 2
Packaging Bulk
RoHS Compliant
Termination Radial
Tolerance 0.003 %
Width 4.5 mm
Win Source Part Number 1203401-ATS081B
Categories Crystals
Manufacturer CTS Corporation
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ATS081B CAD Model

Description

The 1203401-ATS081B is a crystal oscillator manufactured by CTS Corporation.

  • Frequency: 8.192 MHz
  • Frequency Tolerance: 0.003%
  • Frequency Stability: 50 ppm
  • Load Capacitance: 18 pF
  • Tolerance: 0.003%
  • ESR (Equivalent Series Resistance): 60 Ω
  • Termination Type: Radial
  • Length: 10.8458 mm
  • Height: 3.683 mm
  • Contact Plating: Copper, Silver, Tin
  • Pins: 2
  • RoHS Compliant: Yes
  • Temperature Range: -20 °C to 70 °C
