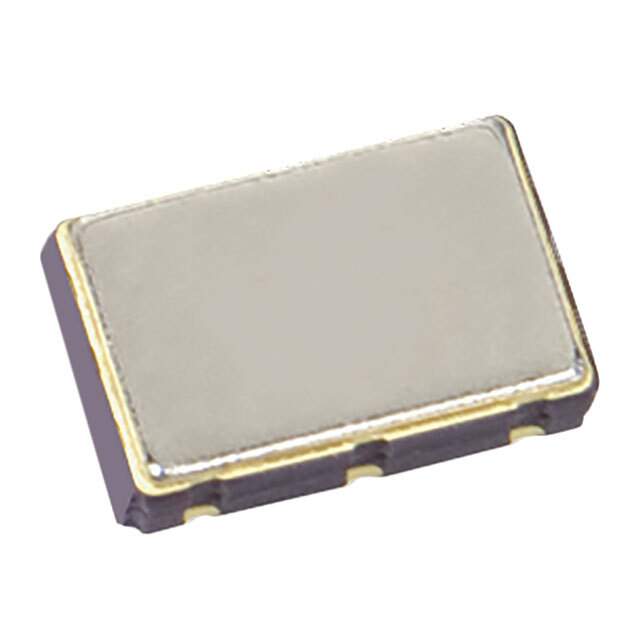

656C10005C3T Real Image
Same model may have multiple batches, images only for reference.

656C10005C3T

Part No 656C10005C3T
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 100.0000MHZ HCMOS  /  100 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
656C10005C3T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr CTS-Frequency Controls
Series 656C
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 20mA (Typ)
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.073" (1.85mm)
Current - Supply (Disable) (Max) 20µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1050565-656C10005C3T
Ultra Librarian 3D Model Ultra Librarian 656C10005C3T CAD Model

Description

The 656C series XO oscillator from CTS-Frequency Controls is a high-quality component designed for use in a range of electronic devices.

  • Frequency: 100 MHz
  • Function: enable/disable
  • Outputs: HCMOS signals
  • Frequency Stability: ±25ppm
  • Maximum Supply Current: 20mA
  • Voltage: 3.3V
  • Package: surface mount with no lead
  • Temperature Range: -20°C to 70°C
