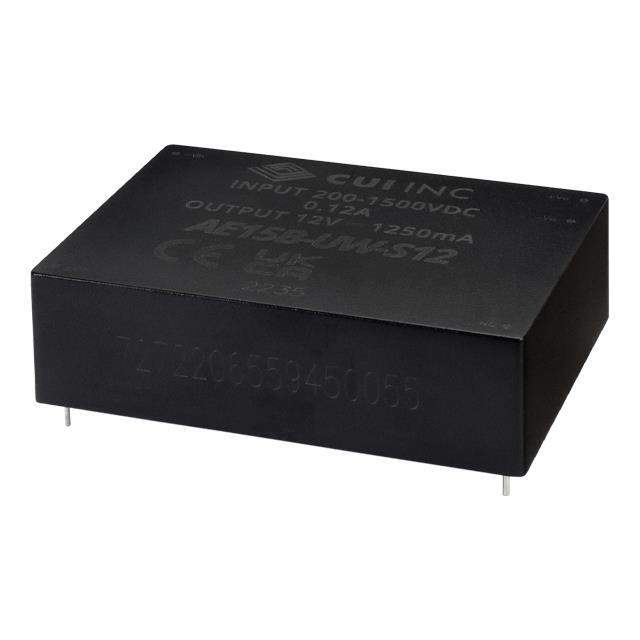

Same model may have multiple batches, images only for reference.

AE15B-UW-S12

Name: AE15B-UW-S12
Brand: CUI Inc.
SKU: 1350454
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AE15B-UW-S12
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC-DC ISOLATED, 15 W, 200~1500 V / Isolated Module DC DC Converter 1 Output 12V 1.25A 200V - 1500V Input
Datasheet	AE15B-UW-S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	AE15B-UW (15W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	200V
Voltage - Input (Max)	1500V
Voltage - Output 1	12V
Current - Output (Max)	1.25A
Power (Watts)	15 W
Voltage - Isolation	5.6 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 70°C (With Derating)
Efficiency	71%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Size / Dimension	3.50" L x 2.50" W x 0.98" H (89.0mm x 63.5mm x 25.0mm)
Approval Agency	CE, EN, UKCA
Standard Package	12
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350454-AE15B-UW-S12
Ultra Librarian 3D Model	Ultra Librarian AE15B-UW-S12 CAD Model

Alternative Products

Description

The AE15B-UW (15W) is an isolated module DC-DC converter that is designed for ITE (Commercial) applications.

Power: 15W
Output Voltage: 12V
Voltage Isolation: 5.6 kV
Efficiency: 71%
Mounting Type: Through Hole
Package / Case: 5-DIP Module
Operating Temperature: -40°C to 70°C (with derating)
Approvals: CE, EN, UKCA
Dimensions: 3.50” L x 2.50” W x 0.98” H (89.0mm x 63.5mm x 25.0mm)
Package: Tray
Standard Package: 12 Pieces
