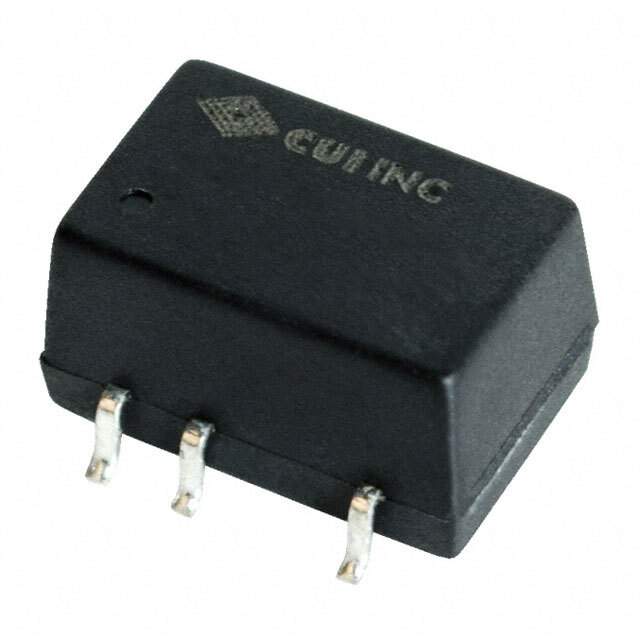

Same model may have multiple batches, images only for reference.

PDS2-S5-S5-M

Name: PDS2-S5-S5-M
Brand: CUI Inc.
SKU: 1316433
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PDS2-S5-S5-M
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
Datasheet	PDS2-S5-S5-M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	CUI Inc.
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	400mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	79%
Mounting	Surface Mount
Case / Package	8-SMD Module, 5 Leads
Size / Dimension	0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Approval Agency	EN
Standard Number	55024; 55032 Class A
Base Product Number	PDS2-S5
Moisture Sensitivity Level (MSL)	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	102-5736,PDS2-S5-S5-M-ND
Standard Package	38
Win Source Part Number	1316433-PDS2-S5-S5-M
Ultra Librarian 3D Model	Ultra Librarian PDS2-S5-S5-M CAD Model

Alternative Products

Description

The PDS2-S5-S5-M is a 2W isolated module DC-DC converter designed for use in power supplies.

Output: Single
Maximum Output Current: 400mA
Input Voltage Range: 4.5V to 5.5V
Output Voltage: 5V
Efficiency: 79%
Mounting Type: Surface Mount
Size: 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Case/Package: 5-lead 8-SMD module
Standard Package: 38
Isolation Voltage: 1.5 kV
Operating Temperature: -40°C ~ 105°C (With Derating)
Approval: EN 55024; 55032 Class A
