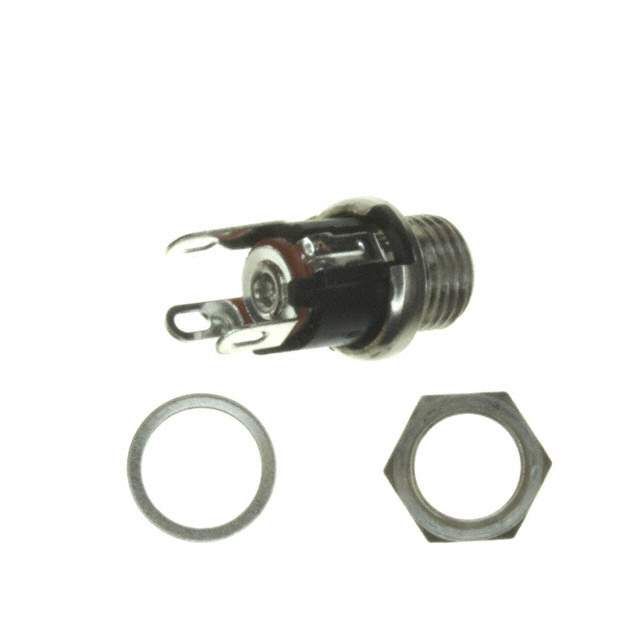

PJ-005B

Name: PJ-005B
Brand: CUI Inc.
SKU: 1334362
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PJ-005B
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	CONN PWR JACK 2.5X5.5MM SOLDER / Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount, Through Hole
Datasheet	PJ-005B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer	CUI Devices
Packaging	Bag
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter	0.098" (2.50mm ID), 0.224" (5.70mm OD)
Number of Positions/Contacts	2 Conductors, 3 Contacts
Internal Switch(s)	Single Switch, Normally Closed
Mounting	Panel Mount, Through Hole
Mounting Feature	Bulkhead - Front Side Nut
Termination	Solder Eyelet(s)
Shielding	Unshielded
Features	Mounting Hardware, Thread Lock
Voltage - Rated	16VDC
Current Rating (Amps)	5 A
Mating Length/Depth	0.354" (9.00mm)
Material Flammability Rating	UL94 V-0
Contact Material - Plating	Silver
Body Material	Brass
Temperature Range - Operating	-40°C ~ 70°C
Includes	3 pcs - 1 Connector, 1 Nut, 1 Washer
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material	Brass, Phosphor Bronze
Body Color	Silver, Black
Base Product Number	PJ-005
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	045-0188R,CP-6,PJ005B,CP-6-NDR
Standard Package	500
Win Source Part Number	1334362-PJ-005B
Ultra Librarian 3D Model	Ultra Librarian PJ-005B CAD Model

Alternative Products

Description

The CUI Devices PJ-005B is a connector used in various electronic devices.

Connector Type: Male Jack
Termination: Solder Eyelet
Contact Material: Brass, Phosphor Bronze
Housing Material: Polybutylene Terephthalate (PBT)
Material Flammability Rating: UL94 V-0
Voltage Rating: 16VDC
Mounting Type: Panel, Through-Hole
Conductors: 2
Contacts: 3
Internal Switch: Single, Normally Closed
Package Contents: 1 Connector, 1 Nut, 1 Washer
Contact Plating: Silver
Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating: 5A
REACH: Unaffected
Operating Temperature: -40°C to 70°C
RoHS3 Compliant: Yes
