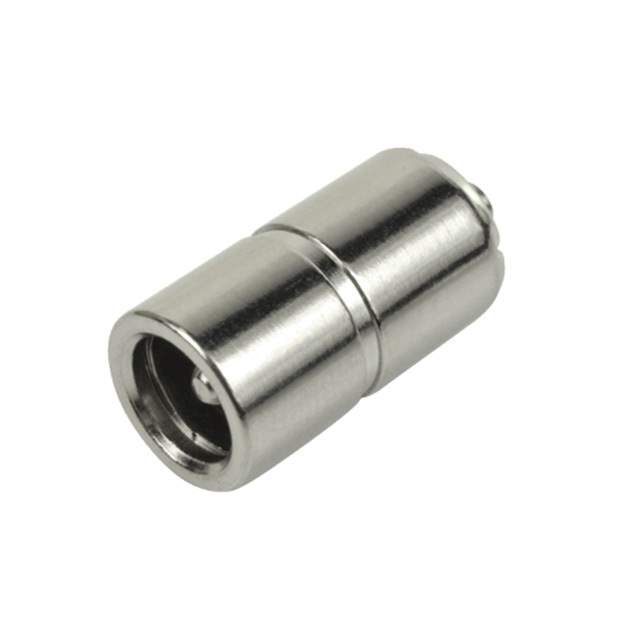

PR-2155 Real Image
Same model may have multiple batches, images only for reference.

PR-2155

Part No PR-2155
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description POWER JACK, 2.1 X 5.5 MM, STRAIG / Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Free Hanging (In-Line)
Datasheet
PR-2155 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer CUI Devices
Packaging Bag
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter 0.083" (2.10mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Free Hanging (In-Line)
Termination Solder Cup
Shielding Unshielded
Insulation Color Black
Voltage - Rated 20VDC
Current Rating (Amps) 7 A
Mating Length/Depth 0.453" (11.50mm)
Contact Material - Plating Nickel
Body Material Brass
Temperature Range - Operating -25°C ~ 70°C
Contact Material Brass
Body Color Silver
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number 102-4758
Standard Package 500
Win Source Part Number 1334279-PR-2155
Ultra Librarian 3D Model Ultra Librarian PR-2155 CAD Model

Description

The CUI Devices PR-2155 is a male jack connector with 2 conductors and 2 contacts. The contact material is made of brass and is plated with nickel.

  • Gender: Male
  • Conductors: 2
  • Contacts: 2
  • Contact Material: Brass
  • Contact Plating: Nickel
  • Shielded: Unshielded
  • Voltage Rating: 20VDC
  • Current Rating: 7A
  • Mounting Technology: Free Hanging (In-Line)
  • Termination Technology: Solder Cup
  • Packaging: Bag
  • Standard Package: 500
  • Mating Diameter: 2.10mm ID (0.083") and 5.50mm OD (0.217")
  • Mating Length/Depth: 0.453" (11.50mm)
  • Temperature Range: -25°C to 70°C
  • Category: Connectors, Interconnects > Barrel Connectors > Power Connectors
  • RoHS3 Compliant: Yes
  • REACH Status: Unaffected
