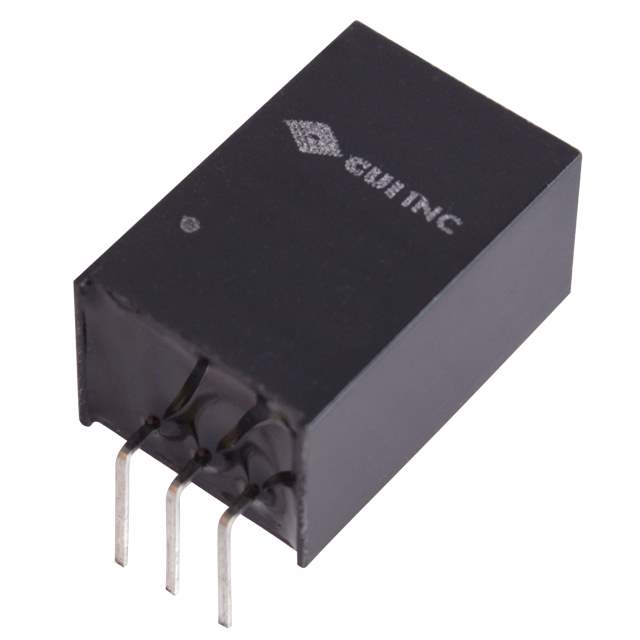

Same model may have multiple batches, images only for reference.

V7803-1500R

Get a Quote

Part No	V7803-1500R
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 4.95W / Linear Regulator Replacement DC DC Converter 1 Output 3.3V 1.5A 4.75V - 18V Input
Datasheet	V7803-1500R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	CUI Inc.
Packaging	Tube
Product Status	Not For New Designs
Type	Linear Regulator Replacement
Number of Outputs	1
Voltage - Input (Min)	4.75V
Voltage - Input (Max)	18V
Voltage - Output 1	3.3V
Current - Output (Max)	1.5A
Power (Watts)	4.95 W
Applications	ITE (Commercial)
Features	OTP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting	Through Hole, Right Angle
Case / Package	3-SIP Module
Size / Dimension	0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
Base Product Number	V7803
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	2266-V7803-1500R,V78031500R,102-2183,656-90663R
Standard Package	44
Win Source Part Number	1336457-V7803-1500R
Ultra Librarian 3D Model	Ultra Librarian V7803-1500R CAD Model

Alternative Products

Description

The V7803-1500R is a DC-DC converter from CUI Inc. that is used in various applications such as ITE (Commercial).

Type: Linear regulator replacement
Features: OTP and SCP
Output Current: 1.5A
Power: 4.95W
Input Voltage: 4.75V to 18V
Output Voltage: 3.3V
Efficiency: 91%
Operating Temperature: -40°C to 85°C
Package: 3-SIP module
Package: 44
