Same model may have multiple batches, images only for reference.

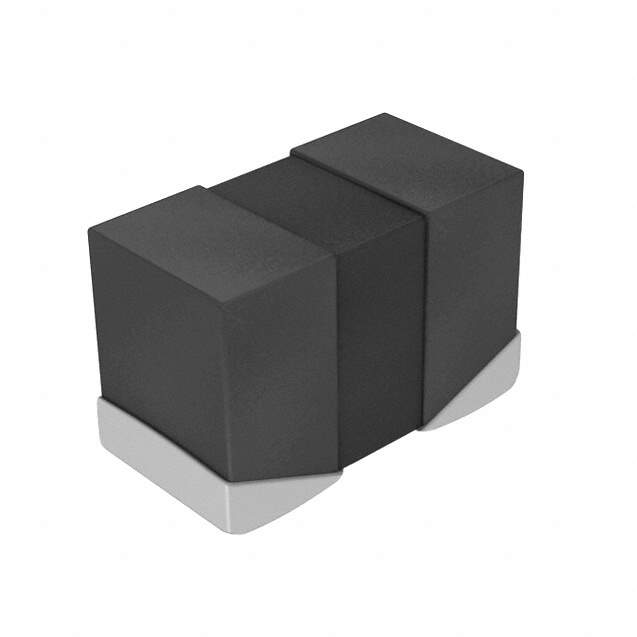

MBKK2012T4R7M Real Image
Same model may have multiple batches, images only for reference.

MBKK2012T4R7M

Part No MBKK2012T4R7M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 600MA 615MOHM SM / 4.7 µH Shielded Drum Core, Wirewound Inductor 600 mA 615mOhm Max 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series MCOIL™, MB
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 600mA
Shielding Shielded
DC Resistance (DCR) 615mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 587-4160-6,587-4160-2,LQ MBKK2012T4R7M,587-4160-1
Standard Package 3,000
Win Source Part Number 1078074-MBKK2012T4R7M
Ultra Librarian 3D Model Ultra Librarian MBKK2012T4R7M CAD Model

Description

The MBKK2012T4R7M is a drum core, wirewound inductor that belongs to the MCOIL™, MB series.

  • Type: drum core, wirewound inductor
  • Series: MCOIL™, MB
  • Shielded: Yes
  • Package: tape and reel
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 615mOhm Max
  • Current Rating: 600 mA
  • Height: 0.039 inches (1.00mm)
  • Dimension: 0.079 inches L x 0.049 inches W (2.00mm x 1.25mm)
  • Temperature Range: -40°C to 105°C
  • Win Source Part Number: 1078074-MBKK2012T4R7M
