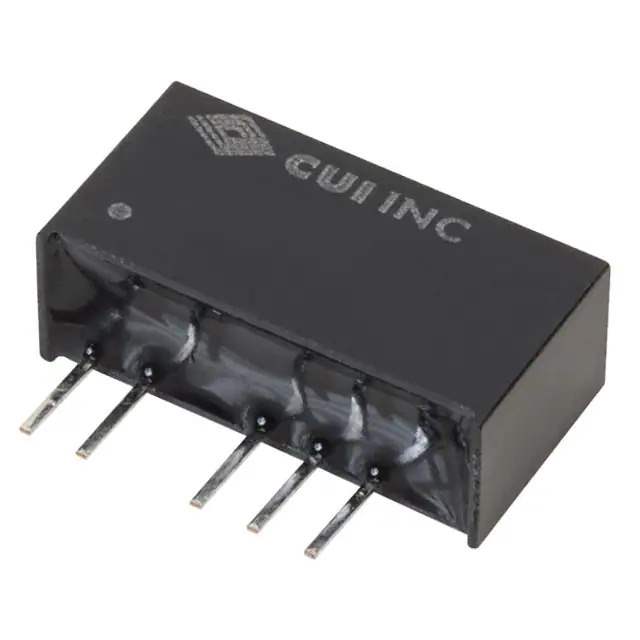

PDM1-S5-D12-S

Name: PDM1-S5-D12-S
Brand: CUI Inc.
SKU: 848143
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PDM1-S5-D12-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
Datasheet	PDM1-S5-D12-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PDM1-S (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	80%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm)
Approval Agency	CB Scheme, EN, IEC, UL
Standard Number	55024; 55032 Class A; 60950-1
Base Product Number	PDM1-S5
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	848143-PDM1-S5-D12-S
Ultra Librarian 3D Model	Ultra Librarian PDM1-S5-D12-S CAD Model

Alternative Products

Description

The PDM1-S5-D12-S is an isolated module DC-DC converter from the PDM1-S (1W) series of power supplies.

Application: ITE (Commercial)
Power: 1W
Protection: SCP (Short Circuit Protection)
Outputs: 2
Output Current: 42mA and 42mA
Output Voltages: 12V and -12V
Voltage Isolation: 1.5 kV
Input Voltage Range: 4.5V to 5.5V
Efficiency: 80%
Mounting Type: Through Hole
Package: 6-SIP Module, 5 Leads
Operating Temperature: -40°C to 105°C
Manufacturer: CUI Inc.
Package: Tube, 25 pcs
Product Status: Active
REACH: Unaffected
Approvals: CB Scheme, EN, IEC, UL
