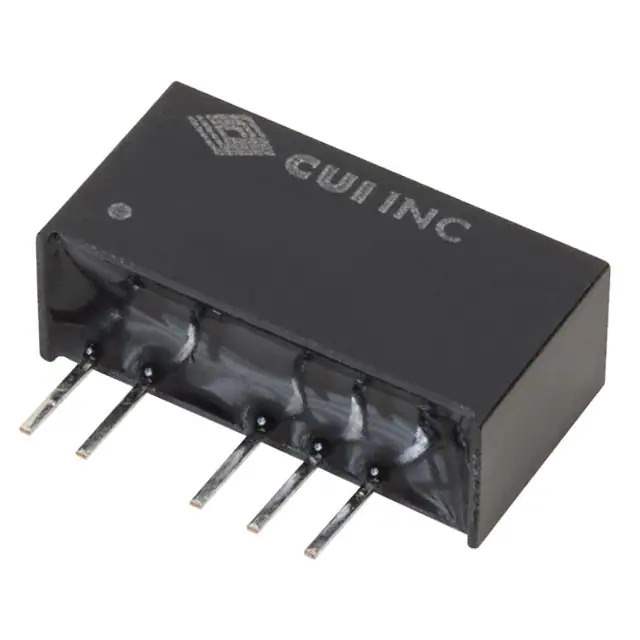

PDM2-S5-D5-S

Name: PDM2-S5-D5-S
Brand: CUI Inc.
SKU: 847425
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PDM2-S5-D5-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 2W
Datasheet	PDM2-S5-D5-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	PDM2-S (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	200mA, 200mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)
Approval Agency	CB Scheme, EN, IEC, UL
Standard Number	55024; 55032 Class A; 60950-1
Base Product Number	PDM2-S5
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847425-PDM2-S5-D5-S
Ultra Librarian 3D Model	Ultra Librarian PDM2-S5-D5-S CAD Model

Alternative Products

Description

The 847425-PDM2-S5-D5-S is a compact DC-DC converter from CUI Inc.

Series: PDM2-S
Power Rating: 2W
Output 1: 5V
Output 2: -5V
Output Current: 200mA (each output)
Input Voltage: 4.5V to 5.5V
Protection: Short-Circuit Protection (SCP)
Package: Tube
Dimensions: 0.77" L x 0.28" W x 0.39" H
Package Type: 6-SIP Module, 5 Leads
Operating Temperature: -40°C to 105°C
Compliance: CB Scheme, EN, IEC, UL
Application: ITE (Commercial)
