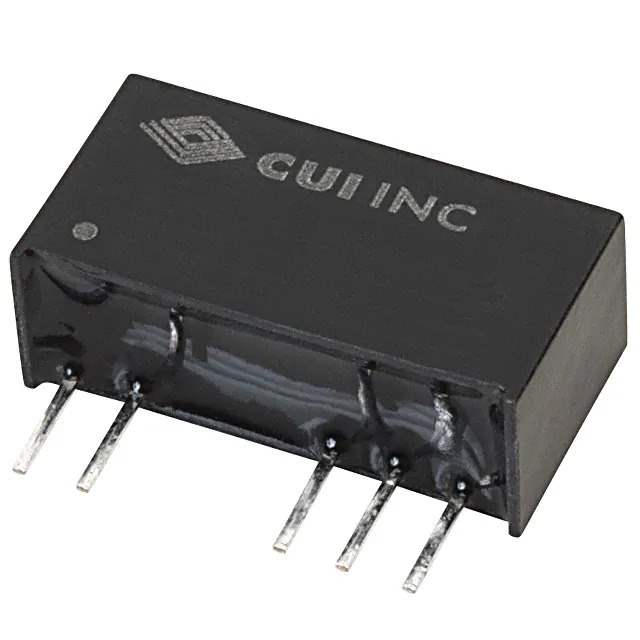

PEM2-S5-D5-S Real Image
Same model may have multiple batches, images only for reference.

PEM2-S5-D5-S

Part No PEM2-S5-D5-S
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W
Datasheet
PEM2-S5-D5-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr CUI Inc.
Series PEM2-S (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C
Efficiency 84%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)
Approval Agency CB Scheme, EN, IEC, UL
Standard Number 55024; 55032 Class A; 60950-1
Base Product Number PEM2-S5
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847507-PEM2-S5-D5-S
Ultra Librarian 3D Model Ultra Librarian PEM2-S5-D5-S CAD Model

Description

The PEM2-S5-D5-S is a power supply module from CUI Inc.

  • Series: PEM2-S
  • Power: 2W
  • Protection: SCP (Short Circuit Protection)
  • Package Size: 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)
  • Voltage Isolation: 3 kV
  • Outputs: Two
  • Output Current: 200mA each
  • Input Voltage: 4.5V to 5.5V
  • Output Voltages: 5V and -5V
  • Efficiency: 84%
  • Application: ITE (Commercial)
  • Mounting: Through hole
  • Package: 7-SIP module with 5 leads
  • Operating Temperature: -40°C to 105°C
  • Approvals: CB Scheme, EN, IEC, and UL
