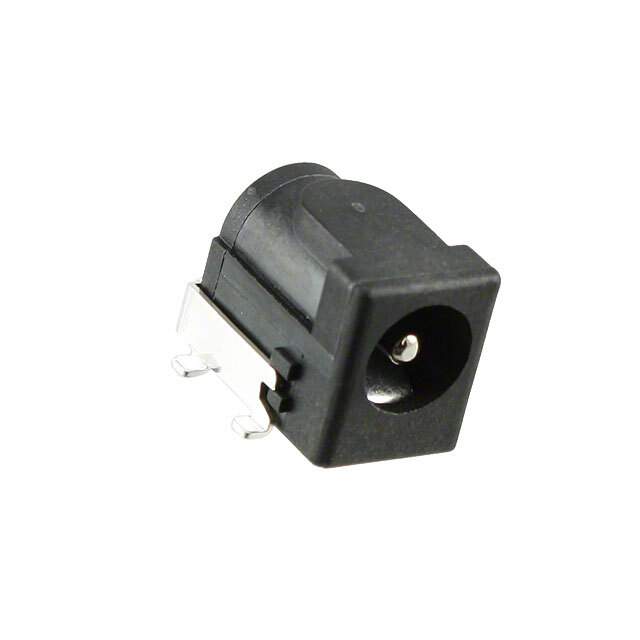

PJ-002AH-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

PJ-002AH-SMT-TR

Part No PJ-002AH-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2X5.5MM SOLDER / DC POWER JACK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer CUI Devices
Packaging Reel
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Style SMD
Termination Solder
Shielding Unshielded
Features Board Guide
Voltage - Rated 24VDC
Current Rating (Amps) 5A
Mating Length/Depth 0.350" (8.90mm)
Material Flammability Rating UL94 V-0
Contact Material - Plating Nickel
Temperature Range - Operating -25°C ~ 85°C
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material Brass, Copper Alloy
Body Color Black
Manufacturer Pack Quantity 350
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 801916-PJ-002AH-SMT-TR
Ultra Librarian 3D Model Ultra Librarian PJ-002AH-SMT-TR CAD Model

Description

The PJ-002AH-SMT-TR is a male connector manufactured by CUI Devices.

  • Popularity: High
  • Supply and Demand Status: Balanced
  • Board Guide: Yes
  • Contact Material: Brass, Copper Alloy
  • Housing Material: Polyamide, Nylon 6T
  • Voltage Rating: 24VDC
  • Shielding: Unshielded
  • Conductors: 2
  • Contacts: 3
  • Switch: Single, Normally Closed
