Same model may have multiple batches, images only for reference.

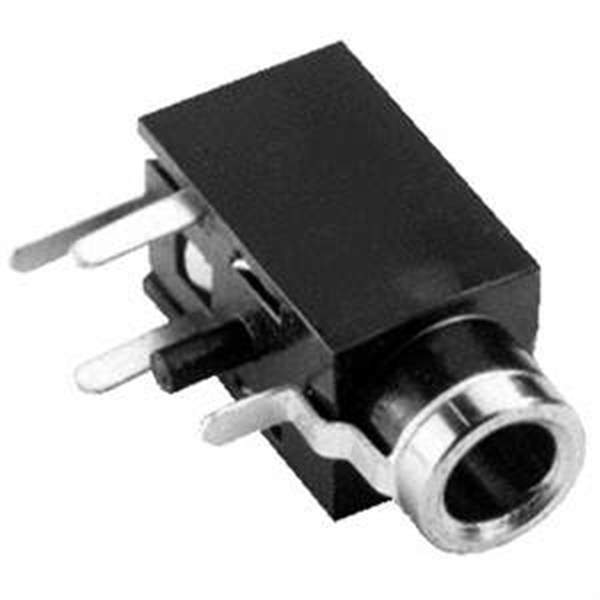

SJ1-2503A Real Image
Same model may have multiple batches, images only for reference.

SJ1-2503A

Part No SJ1-2503A
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK STEREO 2.5MM R/A / 2.5mm STEREO JACK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer CUI Devices
Packaging Bulk
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Actual Diameter 0.102" (2.60mm)
Number of Positions/Contacts 3 Conductors, 4 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Style Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Voltage - Rated 12VDC
Current Rating (Amps) 1A
Mating Length/Depth 0.433" (11.00mm)
Contact Material - Plating Tin
Body Material Brass
Body Color Silver, Black
Housing Material Polybutylene Terephthalate (PBT)
Contact Material Brass; Copper Alloy
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811372-SJ1-2503A
Ultra Librarian 3D Model Ultra Librarian SJ1-2503A CAD Model

Description

The CUI Devices SJ1-2503A is a phone jack connector that has a limited supply and demand status in the market.

  • Mounting Style: Through Hole, Right Angle
  • Gender: Female
  • Conductors: 3
  • Contacts: 4
  • Contact Material: Brass and Copper Alloy
  • Contact Plating: Tin
  • Actual Diameter: 0.102" (2.60mm)
  • Mating Diameter (Industry Recognized): 2.50mm (0.094", 3/32", sub mini, miniature) - headphone
  • Voltage Rating: 12VDC
  • Current Rating: 1A
  • Applications: Audio and Video Equipment
