980TR Keystone Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Actual Diameter 0.102" (2.60mm)
Number of Positions/Contacts 3 Conductors, 5 Contacts
Internal Switch(s) Two Switches
Mounting Type Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1609174-980TR
Ultra Librarian 3D Model Ultra Librarian 980TR CAD Model

You May Also Be Interested in

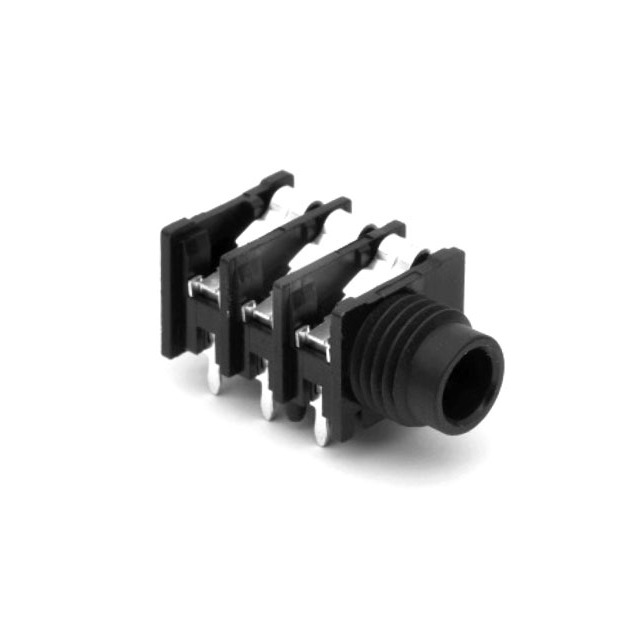

MN114BX Real Image
