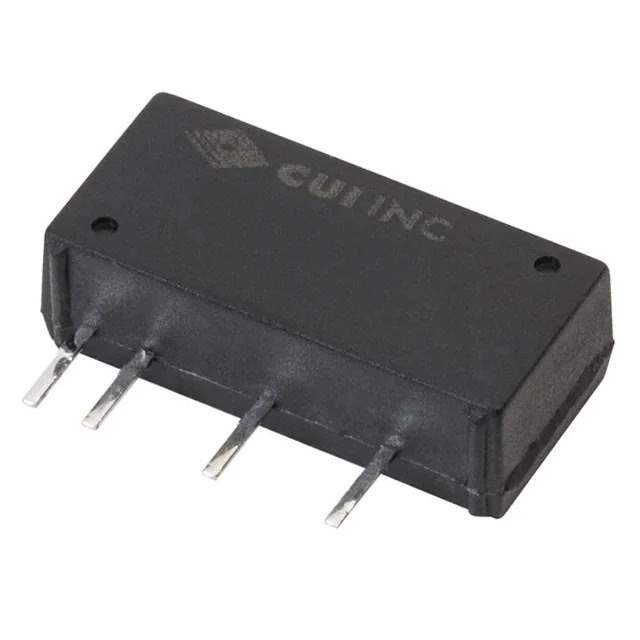

Same model may have multiple batches, images only for reference.

VIBLSD1-S24-S5-SIP

Name: VIBLSD1-S24-S5-SIP
Brand: CUI Inc.
SKU: 847884
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VIBLSD1-S24-S5-SIP
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 22.8V - 25.2V Input
Datasheet	VIBLSD1-S24-S5-SIP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	VIBLSD1-SIP (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	22.8V
Voltage - Input (Max)	25.2V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	70%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
Base Product Number	VIBLSD1
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847884-VIBLSD1-S24-S5-SIP
Ultra Librarian 3D Model	Ultra Librarian VIBLSD1-S24-S5-SIP CAD Model

Alternative Products

Description

The VIBLSD1-SIP (1W) is a power supply module designed for board mount DC-DC converters from CUI Inc.

Power Rating: 1W.
Applications: Commercial IT industry.
Output: Single output with a maximum current output of 200mA.
Input Voltage Range: 22.8V to 25.2V.
Voltage Isolation: 1 kV.
Efficiency: 70%.
Package Size: 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm).
Mounting: Through a hole.
Protection: SCP (Short Circuit Protection).
Package: 6-SIP module with 4 leads.
Operating Temperature Range: -40°C to 85°C.
Product Status: Active.
