Same model may have multiple batches, images only for reference.

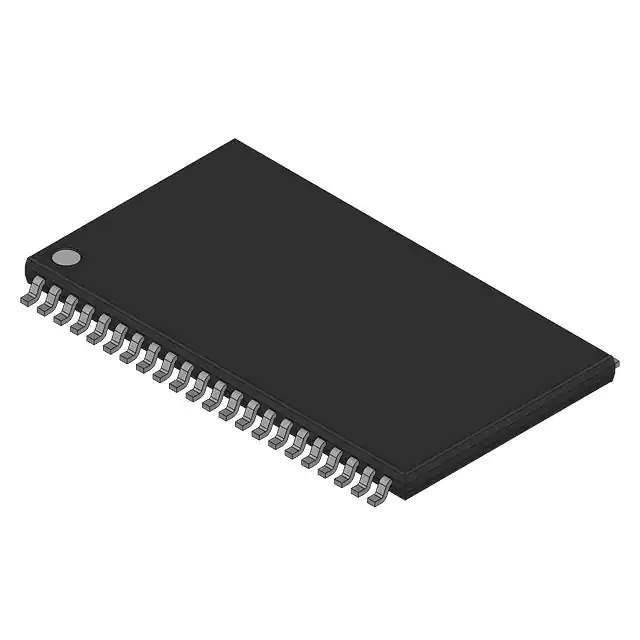

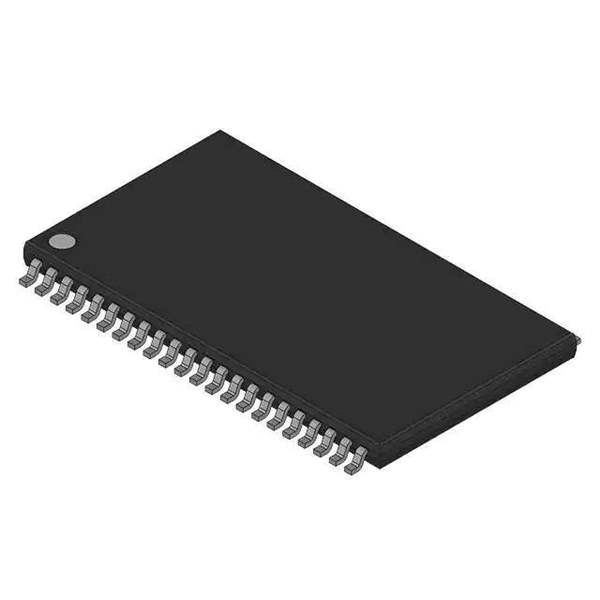

CY62136VLL-70ZI Real Image
Same model may have multiple batches, images only for reference.

CY62136VLL-70ZI

Part No CY62136VLL-70ZI
Manufacturer Cypress Semiconductor Corp
Catalog Memory
Description IC SRAM 2MBIT PARALLEL 44TSOP II / SRAM - Asynchronous Memory IC 2Mbit Parallel 70 ns 44-TSOP II
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Cypress Semiconductor Corp
Series MoBL®
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 2Mbit
Memory Organization 128K x 16
Memory Interface Parallel
Write Cycle Time - Word, Page 70ns
Access Time 70 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 44-TSOP (0.400", 10.16mm Width)
Supplier Device Package 44-TSOP II
Base Product Number CY62136
Standard Package 19 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN 3A991B2A
HTSUS 8542.32.0041
Win Source Part Number 581621-CY62136VLL-70ZI
Ultra Librarian 3D Model Ultra Librarian CY62136VLL-70ZI CAD Model

Description

The CY62136VLL-70ZI is a 2Mbit asynchronous SRAM memory chip.

  • Access Time: 70 ns
  • Operating Temperature: -40°C to 85°C
  • Memory Type: volatile
  • Power Supply Voltage: 2.7V to 3.6V
  • Package: surface mount with 44 pins
  • Memory Organization: 128K x 16
  • Product Status: active
  • Manufacturer: Cypress Semiconductor Corp
  • Applications: memory applications that require low power consumption and high reliability, such as battery-powered devices and industrial control systems.
