Same model may have multiple batches, images only for reference.

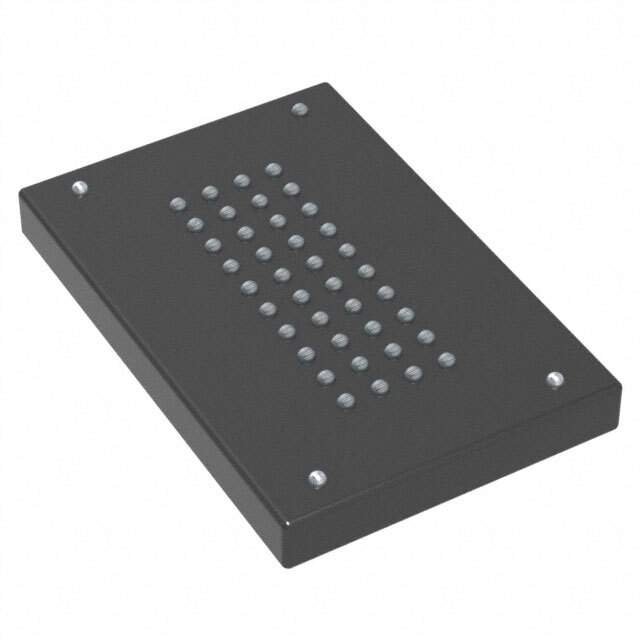

S29XS128RABBHW003 Real Image
Same model may have multiple batches, images only for reference.

S29XS128RABBHW003

Part No S29XS128RABBHW003
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC FLASH 128MBIT PARALLEL 44FBGA  /  FLASH - NOR Memory IC 128Mb (8M x 16) Parallel 108 MHz 80 ns 44-FBGA (7.5x5)
Datasheet
S29XS128RABBHW003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Series XS-R
Package Tape & Reel (TR)
Product Status Obsolete
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 128Mb (8M x 16)
Memory Interface Parallel
Clock Frequency 108 MHz
Write Cycle Time - Word, Page 60ns
Access Time 80 ns
Voltage - Supply 1.7V ~ 1.95V
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 44-VFBGA
Supplier Device Package 44-FBGA (7.5x5)
Standard Package 2,400
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1254613-S29XS128RABBHW003
Ultra Librarian 3D Model Ultra Librarian S29XS128RABBHW003 CAD Model

Description

The S29XS128RABBHW003 is a non-volatile 128Mb (8M x 16) FLASH-NOR memory in a 44-FBGA package manufactured by Cypress Semiconductor Corp

  • Memory Size: 128Mb (8M x 16)
  • Access Time: 80 ns
  • Clock Frequency: 108 MHz
  • Voltage Supply: 1.7V to 1.95V
  • Operating Temperature: -25°C to 85°C
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Package: 44-FBGA
