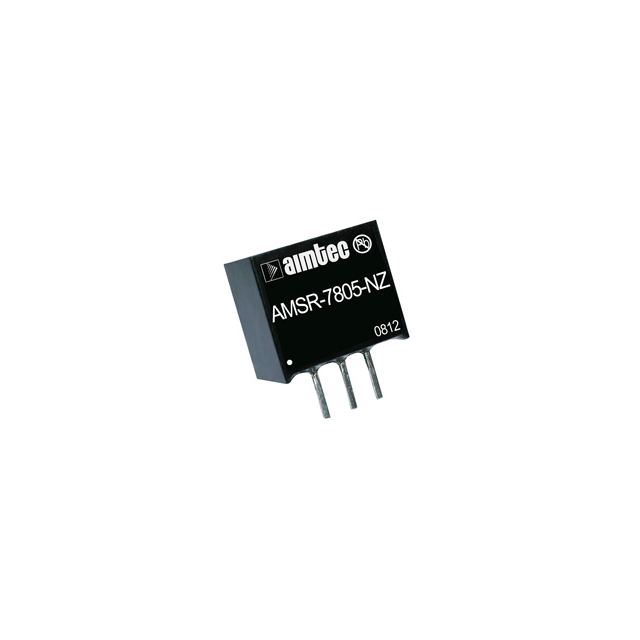

AMSR-7805-NZ Real Image
Same model may have multiple batches, images only for reference.

AMSR-7805-NZ

Part No AMSR-7805-NZ
Manufacturer Dc Components
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2.5W
Datasheet
AMSR-7805-NZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Features Non-Isolated PoL Module DC DC Converter Output 5V - - - 500mA 6.5V - 32V Input
Manufacturer AIMTEC
Series AMSR-78-NZ (7.5W)
Package Tube
Operating Temperature Range -40°C ~ 71°C (With Derating)
Mounting Through Hole
Package 3-SIP Module
Family Name AMSR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Quantity per package 43
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 860981-AMSR-7805-NZ
Ultra Librarian 3D Model Ultra Librarian AMSR-7805-NZ CAD Model

Description

The AIMTEC AMSR-7805-NZ is a non-isolated PoL module DC DC converter that outputs 5V - - - 500mA 6.5V - 32V input.

  • Manufacturer: AIMTEC
  • Converter Type: Non-isolated PoL module DC DC converter
  • Output: 5V - - - 500mA
  • Input: 6.5V - 32V
  • Series: AMSR-78-NZ (7.5W)
  • Package: Tube
  • Module: 3-SIP
  • Supply and Demand: Limited
  • Quantity per Package: 43
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.40.9580
