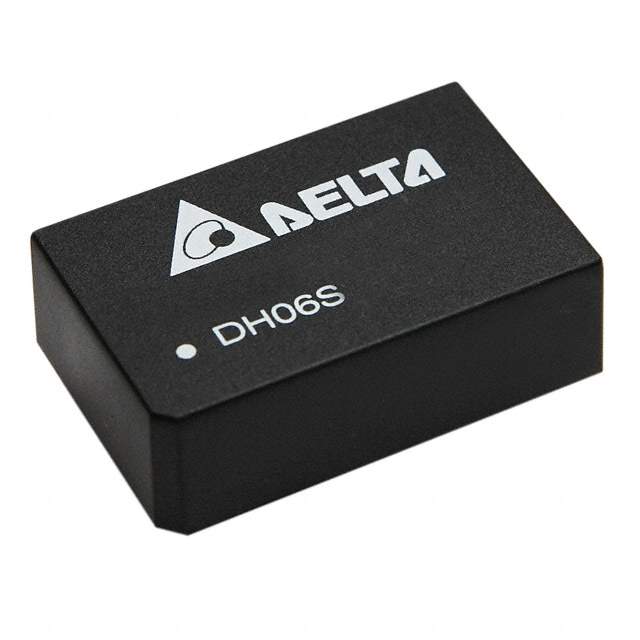

Same model may have multiple batches, images only for reference.

DH06D1215A

Name: DH06D1215A
Brand: Delta Electronics
SKU: 1352053
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	DH06D1215A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 6W / Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 9V - 18V Input
Datasheet	DH06D1215A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Delta Electronics
Series	DH06S/D (6W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	200mA, 200mA
Power (Watts)	6 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	82%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	DH06D
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1352053-DH06D1215A
Ultra Librarian 3D Model	Ultra Librarian DH06D1215A CAD Model

Alternative Products

Description

Delta Electronics DH06D1215A is an isolated module DC DC converter from the DH06S/D (6W) series.

Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Package: Tube
Efficiency: 82%
Voltage - Input (Min): 9V
Voltage - Input (Max): 18V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Output Current (Max): 200mA
Features: OCP, SCP, UVLO
Applications: Medical
Operating Temperature: -40°C ~ 85°C
Package / Case: 24-DIP Module, 8 Leads
